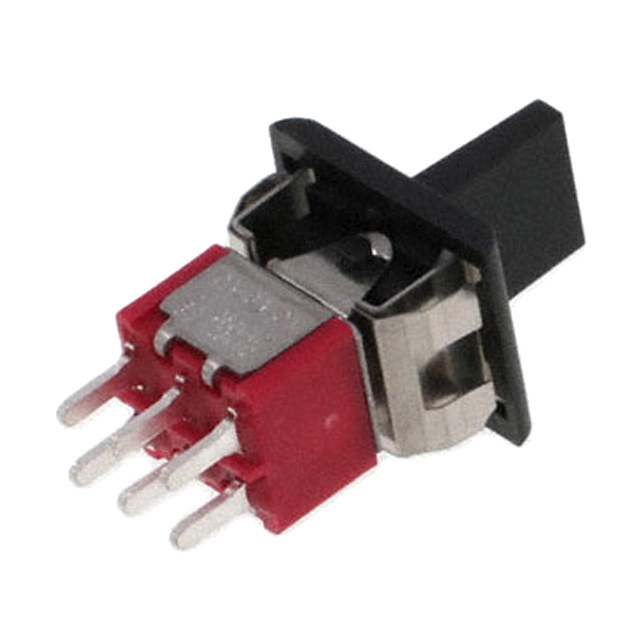

300DP6R7 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SP3T 0.4VA 20V
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Type | Termination Style | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Mounting Type | Features | Color - Actuator/Cap | Voltage Rating - DC | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 85 °C | -30 ░C | 15.24 mm | 12.7 mm | Paddle | Quick Connect - 0.062" (1.5mm) | SP3T | On-On-On | 0.4 VA | 20 V | Panel Mount Snap-In | Jumper needed to achieve triple throw | Black | 20 V | No Marking | |
 E-Switch | 85 °C | -30 ░C | 15.24 mm | 12.7 mm | Paddle | Quick Connect - 0.062" (1.5mm) | SP3T | On-On-On | 5 A | 120 V | Panel Mount Snap-In | Jumper needed to achieve triple throw | Black | 28 V | No Marking | |
E-Switch | 85 °C | -30 ░C | 15.24 mm | 12.7 mm | Paddle | Solder Lug | SP3T | On-On-On | 0.4 VA | 20 V | Panel Mount Snap-In | Jumper needed to achieve triple throw | Black | 20 V | No Marking |
