SM3CQ Series

Catalog

SWITCH LIMIT SPDT 5A 125V

Part	Mounting Type	Termination Style	Circuit	Switch Function	Overtravel [custom]	Overtravel [custom]	Electrical Life	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Force	Mechanical Life	Actuator Type	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Pretravel	Pretravel	Release Force	Pretravel
CIT Relay and Switch SM3CQF0801L00	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	0.015 "	0.4 mm	100000 Cycles	0.05 mm	0.002 in	125 V	80 gf	10000000 Cycles	Round (Pin Plunger)	0.413 in	10.5 mm	120 °C	-40 C	5 A

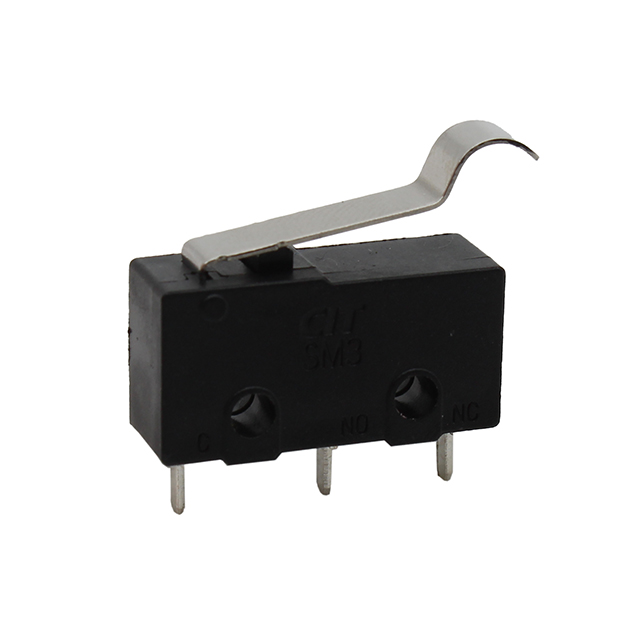

CIT Relay and Switch SM3CQF0803L02	Through Hole	PC Pin	SPDT	On-Mom	0.045 "	1.1 mm	100000 Cycles			125 V		10000000 Cycles	Lever Simulated Roller	0.512 in	13 mm	120 °C	-40 C	5 A	4.5 mm	0.178 in

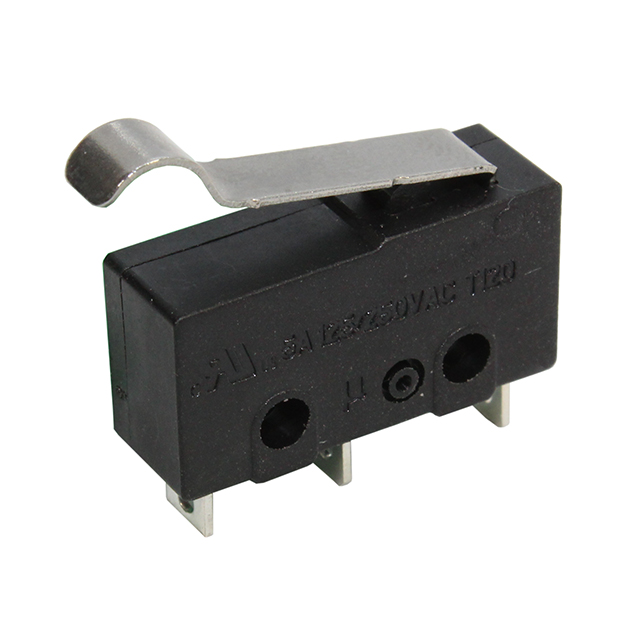

CIT Relay and Switch SM3CQF1302L02	Chassis Mount	Solder Lug	SPDT	On-Mom	0.045 "	1.1 mm	100000 Cycles			125 V	35 gf	10000000 Cycles	Lever Simulated Roller	0.512 in	13 mm	120 °C	-40 C	5 A	4.5 mm	0.178 in	16 gf

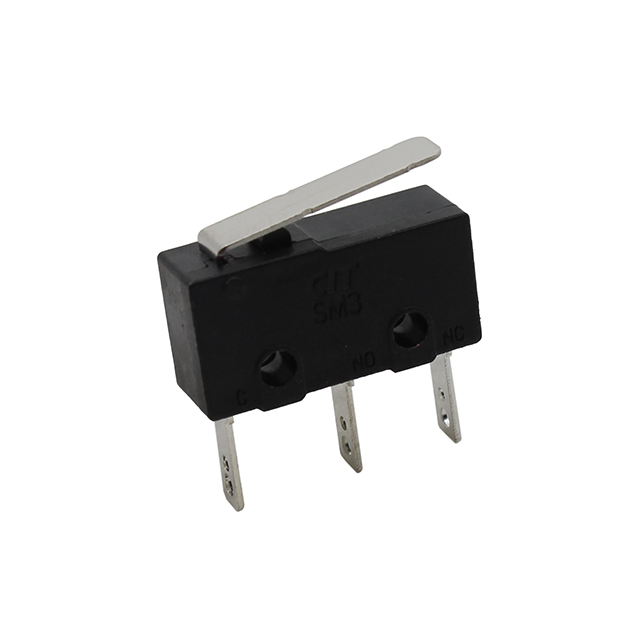

CIT Relay and Switch SM3CQF0801L01	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	0.031 "	0.8 mm	100000 Cycles			125 V	20 gf	10000000 Cycles	Lever Straight	0.413 in	10.5 mm	120 °C	-40 C	5 A		4 mm	10 gf	0.157 in
CIT Relay and Switch SM3CQF3501L01	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	0.031 "	0.8 mm	100000 Cycles			125 V	90 gf	10000000 Cycles	Lever Straight	0.413 in	10.5 mm	120 °C	-40 C	5 A		4 mm	45 gf	0.157 in
CIT Relay and Switch SM3CQF1304L03	Right Angle Through Hole	PC Pin	SPDT	On-Mom	0.039 "	1 mm	100000 Cycles	0.8 mm	0.031 in	125 V	40 gf	10000000 Cycles	Lever Roller	0.646 in	16.4 mm	120 °C	-40 C	5 A		4.1 mm	20 gf	0.161 in
CIT Relay and Switch SM3CQF3504L03	Right Angle Through Hole	PC Pin	SPDT	On-Mom	0.039 "	1 mm	100000 Cycles	0.8 mm	0.031 in	125 V	95 gf	10000000 Cycles	Lever Roller	0.646 in	16.4 mm	120 °C	-40 C	5 A		4.1 mm	38 gf	0.161 in

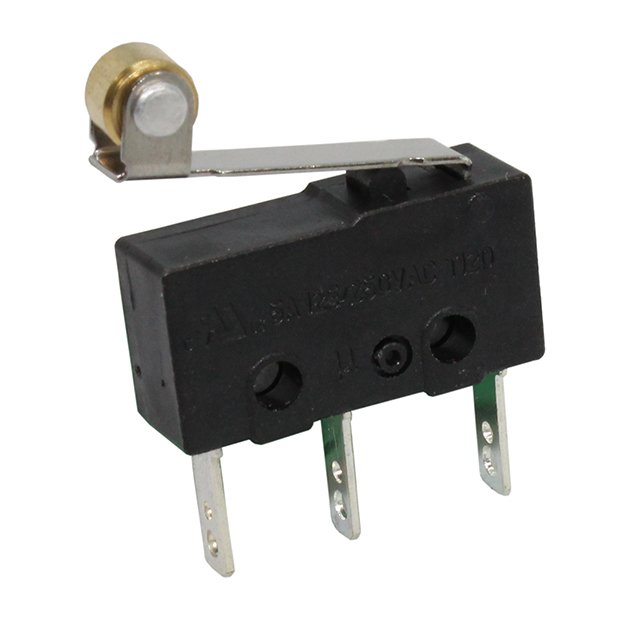

CIT Relay and Switch SM3CQF0801L03	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	0.039 "	1 mm	100000 Cycles	0.8 mm	0.031 in	125 V	18 gf	10000000 Cycles	Lever Roller	0.646 in	16.4 mm	120 °C	-40 C	5 A		4.1 mm		0.161 in
CIT Relay and Switch SM3CQF3502L02	Chassis Mount	Solder Lug	SPDT	On-Mom	0.045 "	1.1 mm	100000 Cycles			125 V	95 gf	10000000 Cycles	Lever Simulated Roller	0.512 in	13 mm	120 °C	-40 C	5 A	4.5 mm	0.178 in	30 gf
CIT Relay and Switch SM3CQF3501L03	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	0.039 "	1 mm	100000 Cycles	0.8 mm	0.031 in	125 V	95 gf	10000000 Cycles	Lever Roller	0.646 in	16.4 mm	120 °C	-40 C	5 A		4.1 mm	38 gf	0.161 in
