ABPDANT015 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

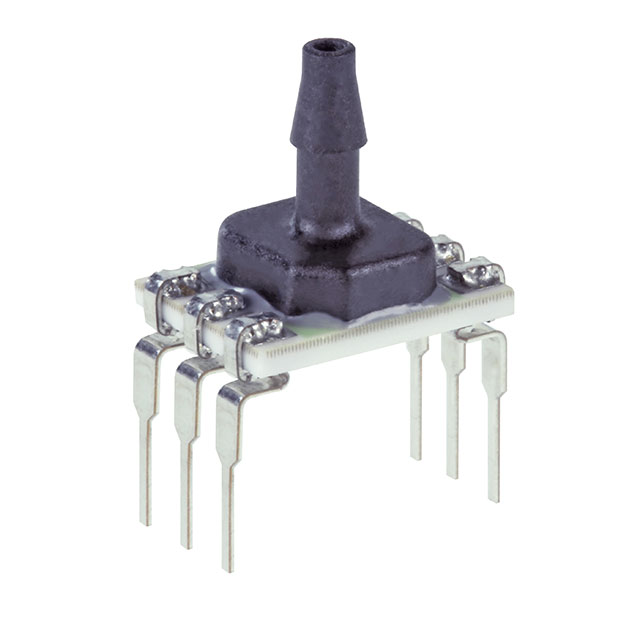

SENSOR 15PSIG 0.08" 4.5V 6DIP
| Part | Features | Operating Pressure [custom] | Operating Pressure [custom] | Port Style | Output [Min] | Output [Max] | Output Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Accuracy | Termination Style | Applications | Supplier Device Package | Port Size [x] | Port Size | Port Size [x] | Package / Case | Pressure Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Amplified Output Temperature Compensated | 15 PSI | 103.42 kPa | Barbed | 0.5 V | 4.5 V | Analog Voltage | 250 PSI | 1723.69 kPa | 85 °C | -40 °C | 0.25 % | PC Pin | Medical Ventilation | 6-DIP | 1.93 mm | Male | 0.08 " | 6-DIP Module | Vented Gauge | Through Hole |
