2825260 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

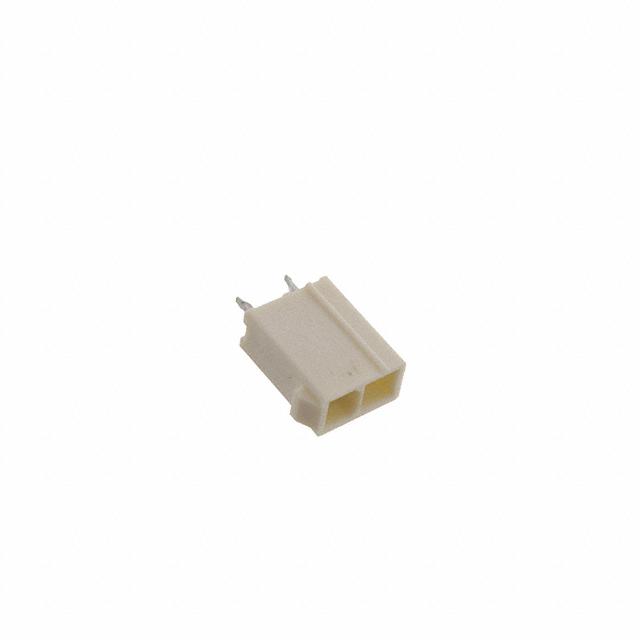

2P VRT HDR VAL-U-LOK HCS V0
| Part | Contact Finish - Post | Termination | Applications | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Style | Number of Positions | Number of Rows | Voltage Rating | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Material | Fastening Type | Insulation Color | Number of Positions Loaded | Shrouding | Current Rating (Amps) | Contact Shape | Contact Type | Mounting Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | Solder | Automotive General Purpose Industrial Lighting Medical | 12.8 mm | 0.504 in | 4.2 mm | 0.165 in | Header | Board to Cable/Wire | 2 | 2 | 600 V | UL94 V-0 | 3.5 mm | 0.138 in | Copper Alloy | Locking Ramp | Natural | All | Shrouded - 4 Wall | 13 A | Square | Male Pin | Through Hole | Nylon Polyamide (PA) | -40 °C | 105 ░C |
