4628 Series
Manufacturer: Bourns Inc.
Beta
⌘K

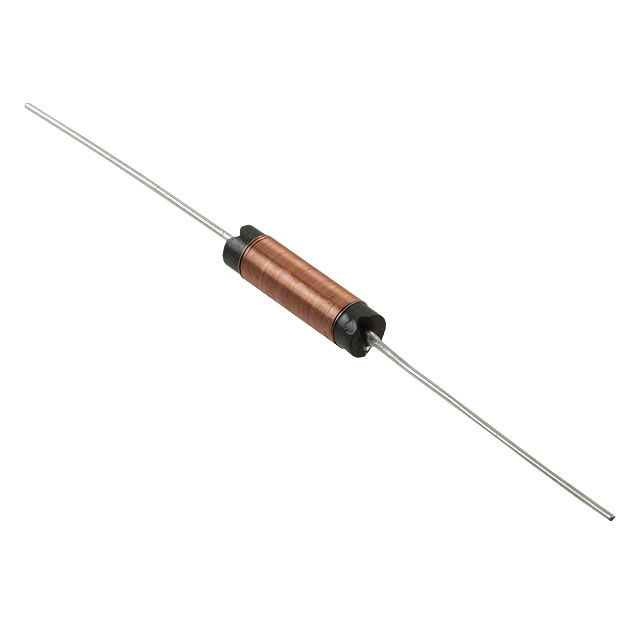

INDUCTOR: WIRE; THT; 39UH; 600MA; 650MΩ; ±5%; Ø7.36X22.22MM
| Part | Material - Core | DC Resistance (DCR) [Max] | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Size / Dimension [custom] | Inductance Frequency - Test | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Q @ Freq | Current Rating (Amps) | Type | Inductance | Frequency - Self Resonant | Tolerance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Iron | 650 mOhm | Axial | 0.29 in | 7.37 mm | 0.875 " | 22.22 mm | 2.52 MHz | Unshielded | -55 C | 105 ░C | 2.52 MHz 70 | 600 mA | Drum Core Wirewound | 39 µH | 20 MHz | 5 % | Through Hole |
