T38021 Series

Catalog

CONN BARRIER STRIP 4CIRC 0.375"

Part	Material Flammability Rating	Operating Temperature	Features	Current Rating (Amps)	Barrier Type	Mounting Type	Top Termination	Terminal Block Type	Material - Insulation	Number of Rows	Number of Wire Entries	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Number of Circuits	Bottom Termination

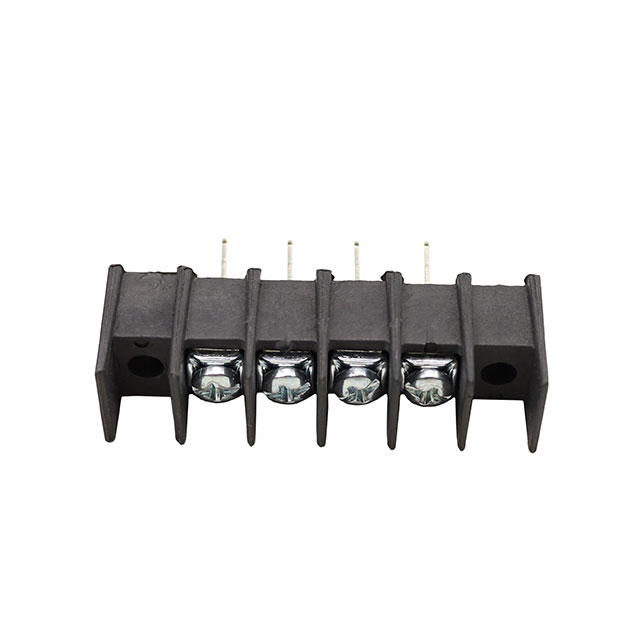

Curtis Industries T38021-04-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	4	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	4	Solder Turret
Curtis Industries T38021-24-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1		300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	24	Solder Turret
Curtis Industries T38021-17-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	17	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	17	Solder Turret
Curtis Industries T38021-11-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	11	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	11	Solder Turret
Curtis Industries T38021-21-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	21	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	21	Solder Turret
Curtis Industries T38021-26-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	26	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	26	Solder Turret

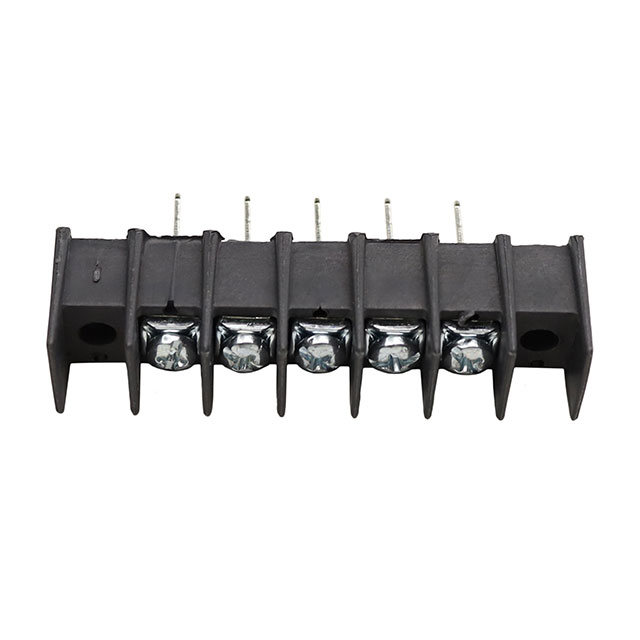

Curtis Industries T38021-05-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	5	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	5	Solder Turret
Curtis Industries T38021-14-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	14	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	14	Solder Turret

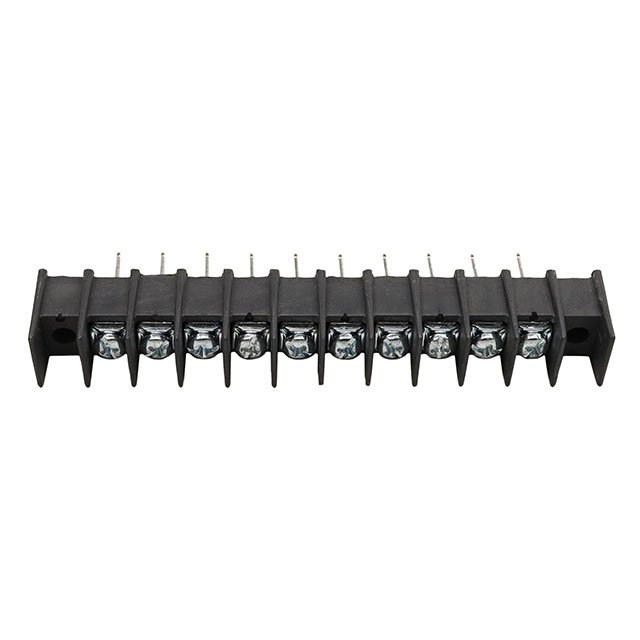

Curtis Industries T38021-10-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	10	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	10	Solder Turret
Curtis Industries T38021-20-0	UL94 V-0	105 C	Flange	20 A	2 Wall (Dual)	Chassis Panel	Screws with Captive Plate	Barrier Block	Polypropylene (PP)	1	20	300 VDC	12 AWG	22 AWG	9.53 mm	0.375 in	20	Solder Turret
