GWE49 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN PCI EXP FMALE 98POS 0.039
| Part | Material - Insulation | Card Thickness | Card Thickness | Features | Card Type | Number of Rows [custom] | Contact Material | Termination | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Contact Finish | Gender | Contact Type | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

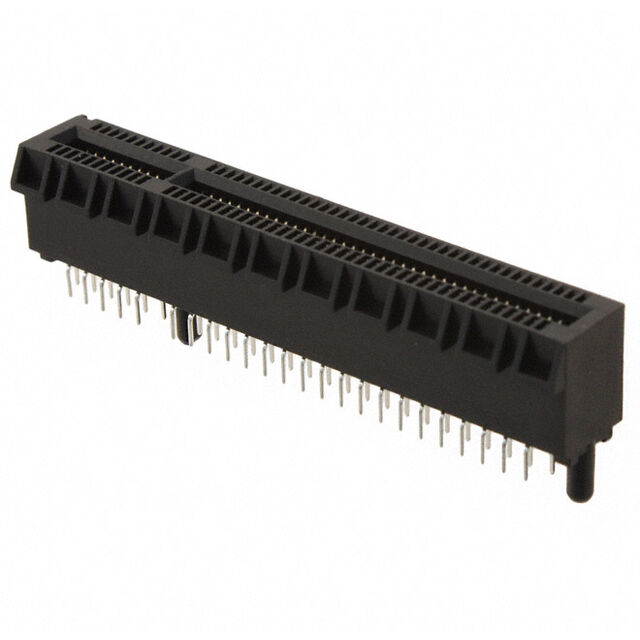

 Sullins Connector Solutions | Polyamide (PA46) Nylon 4/6 | 1.57 mm | 0.062 in | Board Guide Locking Ramp | PCI Express™ | 2 | Phosphor Bronze | Solder Staggered | 98 | 38 | 11 | Dual | Gold | Female | Cantilever | Flash | -55 C | 85 °C | Through Hole | Black | 1 mm | 0.039 in |

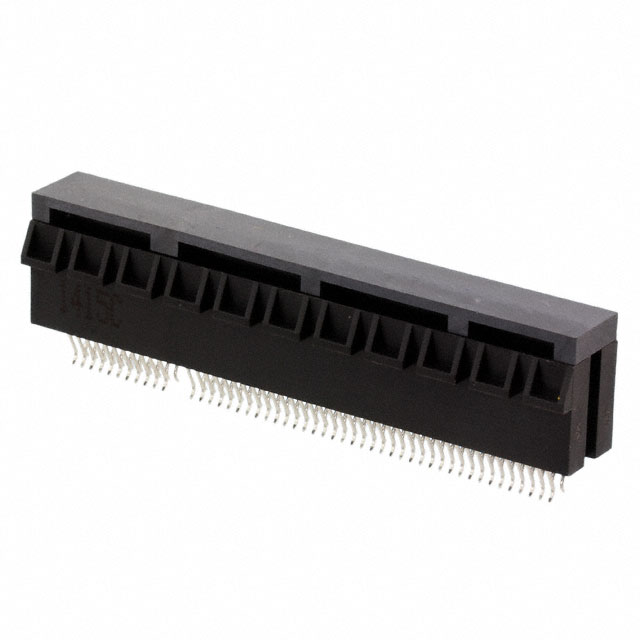

 Sullins Connector Solutions | Polyamide (PA9T) Nylon 9T | 1.57 mm | 0.062 in | Cap Card Extender Locking Ramp | PCI Express™ | 2 | Phosphor Bronze | Solder | 98 | Dual | Gold | Female | Cantilever | Flash | -10 °C | 85 °C | Board Edge Straddle Mount | Black | 1 mm | 0.039 in | ||
 Sullins Connector Solutions | Polyamide (PA9T) Nylon 9T | 1.57 mm | 0.062 in | Board Guide | PCI Express™ | 2 | Phosphor Bronze | Solder | 98 | Dual | Gold | Female | Cantilever | Flash | -10 °C | 85 °C | Surface Mount | Black | 1 mm | 0.039 in |
