OPA2140 Series

Dual-channel, 11-MHz, low-noise 36-V JFET precision operational amplifier with rail-to-rail output

Catalog

Dual-channel, 11-MHz, low-noise 36-V JFET precision operational amplifier with rail-to-rail output

Part	Package / Case	Package / Case [y]	Package / Case [x]	Current - Output / Channel	Voltage - Input Offset	Output Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Number of Circuits	Supplier Device Package	Mounting Type	Amplifier Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Gain Bandwidth Product	Current - Supply	Voltage - Supply Span (Max) [Max]	Package / Case [custom]	Package / Case
Texas Instruments OPA2140AID	8-SOIC	3.9 mm	0.154 in	36 mA	30 çV	Rail-to-Rail	4.5 V	20 V/çs	2	8-SOIC	Surface Mount	J-FET	125 °C	-40 °C	0.5 pA	11 MHz	1.8 mA	36 V
Texas Instruments OPA2140AIDGKR	8-MSOP 8-TSSOP			36 mA	30 çV	Rail-to-Rail	4.5 V	20 V/çs	2		Surface Mount	J-FET	125 °C	-40 °C	0.5 pA	11 MHz	1.8 mA	36 V	0.118 in	3 mm
Texas Instruments OPA2140AIDR	8-SOIC	3.9 mm	0.154 in	36 mA	30 çV	Rail-to-Rail	4.5 V	20 V/çs	2	8-SOIC	Surface Mount	J-FET	125 °C	-40 °C	0.5 pA	11 MHz	1.8 mA	36 V

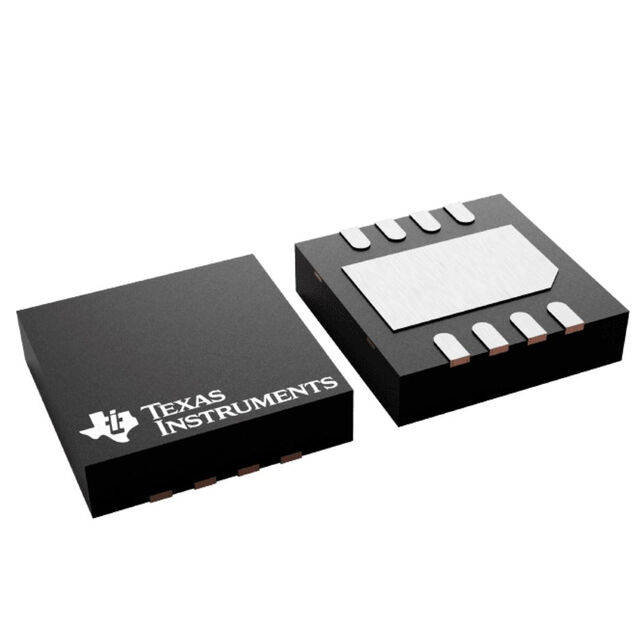

Texas Instruments OPA2140AIDRGR	8-WFDFN Exposed Pad			36 mA	30 çV	Push-Pull Rail-to-Rail	4.5 V	20 V/çs	2	8-WSON (3x3)	Surface Mount	J-FET	125 °C	-40 °C	0.5 pA	11 MHz	1.8 mA	36 V

Catalog

Dual-channel, 11-MHz, low-noise 36-V JFET precision operational amplifier with rail-to-rail output

Key Features

• Very-low offset drift: 1 µV/°C maximumVery-low offset: 120 µVLow input bias current: 10 pA maximumVery-low 1/f noise: 250 nV PP, 0.1 Hz to 10 HzLow noise: 5.1 nV/√ HzSlew rate: 20 V/µsLow supply current: 2 mA maximumInput voltage range includes V– supplySingle-supply operation: 4.5 V to 36 VDual-supply operation: ±2.25 V to ±18 VNo phase reversalPackages:Industry-standard SOIC, SON, SOT-23, TSSOP, and VSSOPVery-low offset drift: 1 µV/°C maximumVery-low offset: 120 µVLow input bias current: 10 pA maximumVery-low 1/f noise: 250 nV PP, 0.1 Hz to 10 HzLow noise: 5.1 nV/√ HzSlew rate: 20 V/µsLow supply current: 2 mA maximumInput voltage range includes V– supplySingle-supply operation: 4.5 V to 36 VDual-supply operation: ±2.25 V to ±18 VNo phase reversalPackages:Industry-standard SOIC, SON, SOT-23, TSSOP, and VSSOP

Description

The OPA140, OPA2140, and OPA4140 (OPAx140) operational amplifier (op amp) family is a series of low-power JFET input amplifiers that features good drift and low input bias current. The rail-to-rail output swing and input range that includes V– allow designers to take advantage of the low-noise characteristics of JFET amplifiers while also interfacing to modern, single-supply, precision analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). The OPA140 achieves 11-MHz unity-gain bandwidth and 20-V/µs slew rate while consuming only 1.8 mA (typical) of quiescent current. This device runs on a single 4.5-V to 36-V supply or dual ±2.25-V to ±18-V supplies. All versions are fully specified from –40°C to +125°C for use in the most challenging environments. The OPA140 (single) is available in the 5‑pin SOT-23 8‑pin VSSOP and 8‑pin SOIC packages. The OPA2140 (dual) is available in 8‑pin SON, 8‑pin VSSOP, and 8‑pin SOIC packages. The OPA4140 (quad) is available in the 14‑pin SOIC and 14‑pin TSSOP packages. The OPA140, OPA2140, and OPA4140 (OPAx140) operational amplifier (op amp) family is a series of low-power JFET input amplifiers that features good drift and low input bias current. The rail-to-rail output swing and input range that includes V– allow designers to take advantage of the low-noise characteristics of JFET amplifiers while also interfacing to modern, single-supply, precision analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). The OPA140 achieves 11-MHz unity-gain bandwidth and 20-V/µs slew rate while consuming only 1.8 mA (typical) of quiescent current. This device runs on a single 4.5-V to 36-V supply or dual ±2.25-V to ±18-V supplies. All versions are fully specified from –40°C to +125°C for use in the most challenging environments. The OPA140 (single) is available in the 5‑pin SOT-23 8‑pin VSSOP and 8‑pin SOIC packages. The OPA2140 (dual) is available in 8‑pin SON, 8‑pin VSSOP, and 8‑pin SOIC packages. The OPA4140 (quad) is available in the 14‑pin SOIC and 14‑pin TSSOP packages.
