083 Series

Catalog

LINE FILTER 250VAC 10A CHASSIS

Part	Termination Style	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC	Applications	Mounting Type
Astrodyne TDI 083.01001.00	IEC Inlet-C14 Quick Connect	Single Phase	85 °C	-25 °C	cURus VDE	10 A	60 Hz	50 Hz	Single Stage	1.45 kV	250 V	General Purpose	Chassis Mount
Astrodyne TDI 083.00301.00	IEC Inlet-C14 Quick Connect	Single Phase	85 °C	-25 °C	cURus VDE	3 A	60 Hz	50 Hz	Single Stage	1.45 kV	250 V	General Purpose	Chassis Mount
Astrodyne TDI 083.00601.00	IEC Inlet-C14 Quick Connect	Single Phase	85 °C	-25 °C	cURus VDE	6 A	60 Hz	50 Hz	Single Stage	1.45 kV	250 V	General Purpose	Chassis Mount

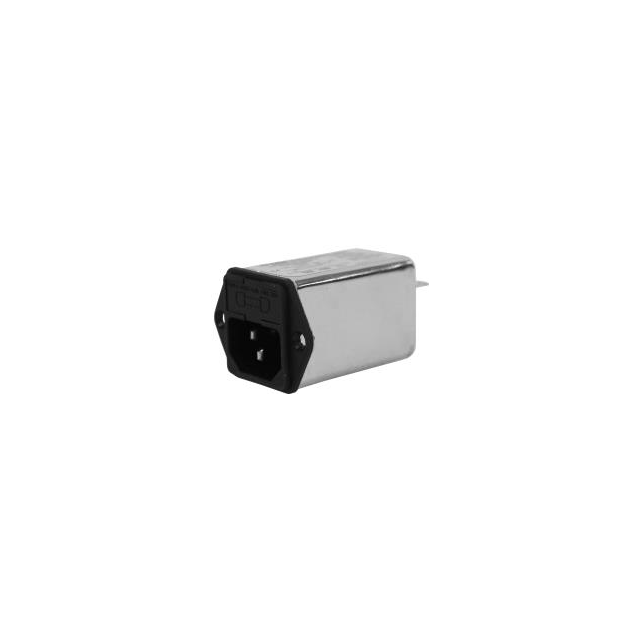

Astrodyne TDI 083.00101.00	IEC Inlet-C14 Quick Connect	Single Phase	85 °C	-25 °C	cURus VDE	1 A	60 Hz	50 Hz	Single Stage	1.45 kV	250 V	General Purpose	Chassis Mount
