666K101 Series

Manufacturer: Cicoil

Catalog

CBL RIBN 10COND 0.039 CLEAR 250'

Part	Jacket (Insulation) Material	Ribbon Width	Ribbon Thickness	Voltage	Length	Length	Pitch	Cable Type	Number of Conductors	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Wire Gauge	Ratings	Jacket Color	Current Rating	Conductor Material	Insulation Resistance

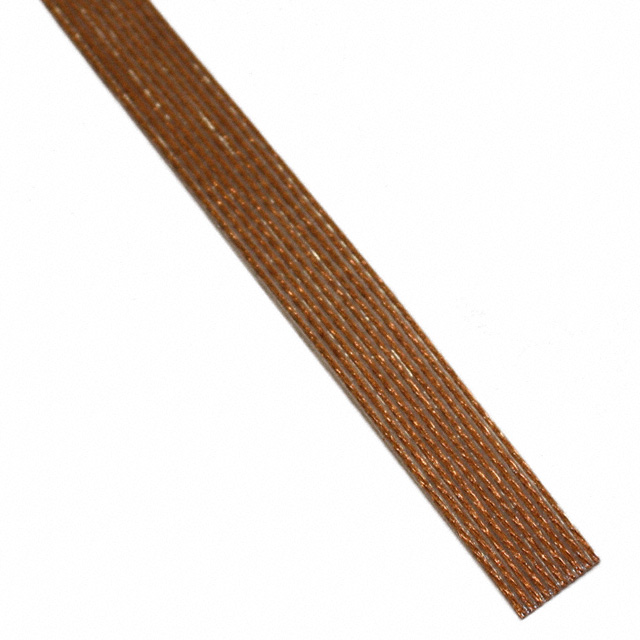

Cicoil 666K101-10	Flexx-Sil™	0.394 in	0.035 in	450 V	25 ft 50 ft 100 ft 250 ft 500 ft 1000 ft	Enter Number of Feet in Order Quantity	0.039 in	Flat Cable	10	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
Cicoil 666K101-34-050	Flexx-Sil™	1.339 in	0.035 in	450 V	50 ft		0.039 in	Flat Cable	34	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
Cicoil 666K101-44-050	Flexx-Sil™	1.732 in	0.035 in	450 V	50 ft		0.039 in	Flat Cable	44	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm

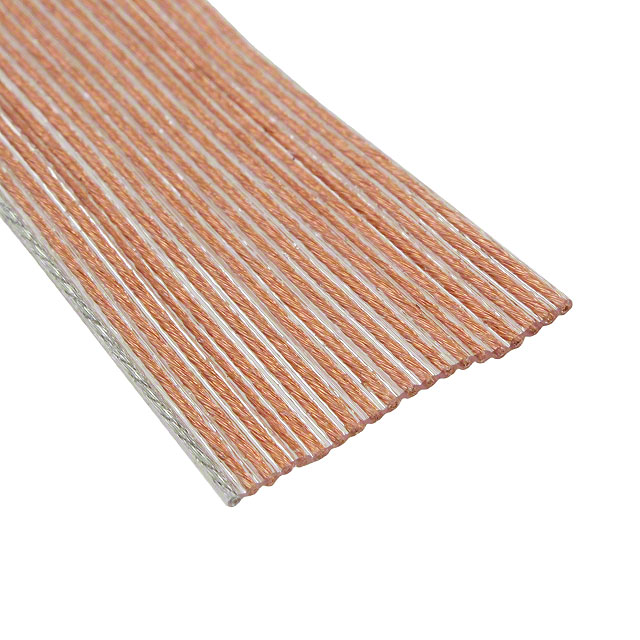

Cicoil 666K101-20	Flexx-Sil™	0.787 in	0.035 in	450 V	50 ft 1000 ft	Enter Number of Feet in Order Quantity	0.039 in	Flat Cable	20	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
Cicoil 666K101-50-050	Flexx-Sil™	1.969 in	0.035 in	450 V	50 ft		0.039 in	Flat Cable	50	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm

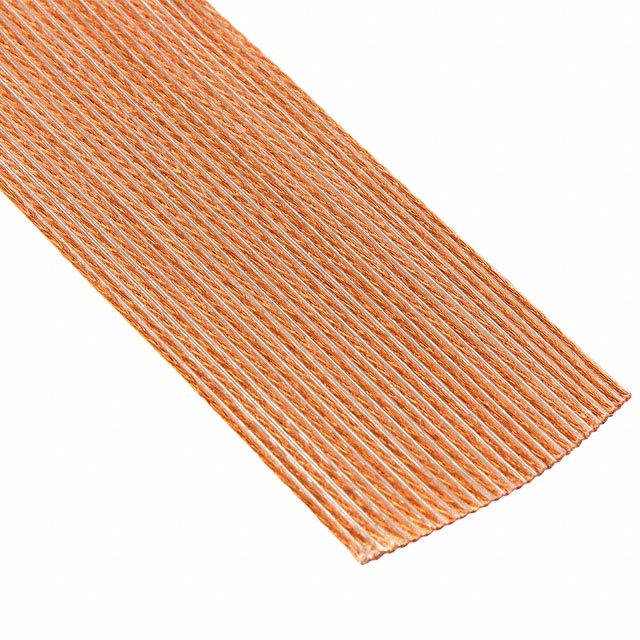

Cicoil 666K101-26	Flexx-Sil™	1.024 in	0.035 in	450 V	50 ft 100 ft 500 ft	Enter Number of Feet in Order Quantity	0.039 in	Flat Cable	26	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
Cicoil 666K101-40-050	Flexx-Sil™	1.575 in	0.035 in	450 V	50 ft		0.039 in	Flat Cable	40	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm

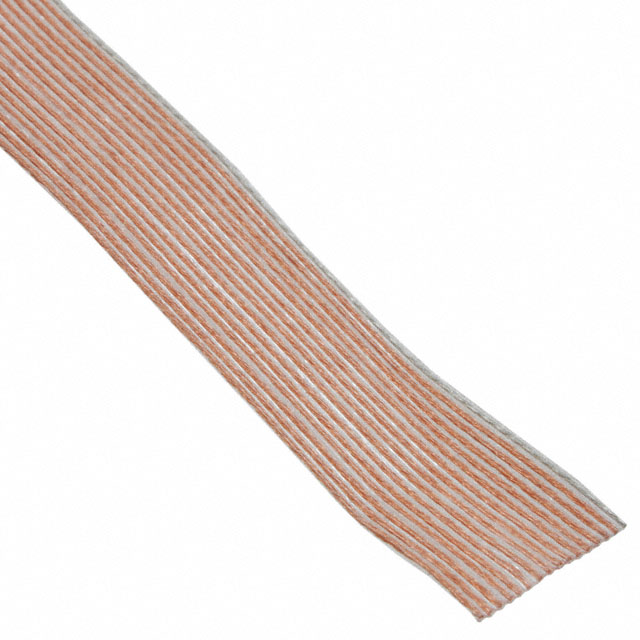

Cicoil 666K101-16	Flexx-Sil™	0.63 in	0.035 in	450 V	25 ft 50 ft 100 ft 500 ft 1000 ft	Enter Number of Feet in Order Quantity	0.039 in	Flat Cable	16	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
Cicoil 666K101-30-050	Flexx-Sil™	1.181 in	0.035 in	450 V	50 ft		0.039 in	Flat Cable	30	500 °F	-65 °C	Unshielded	28 AWG	CE UL E324413	Clear	5 A	Bare Copper	200 MOhm
