SRN3015BTA Series

Catalog

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 1.5UH 20% 100KHZ 10Q-FACTOR FERRITE 2.7A 0.043OHM DCR 1212 T/R AUTOMOTIVE AEC-Q200

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Ratings	Tolerance	Material - Core	Current Rating (Amps)	Package / Case	Package / Case	Inductance Frequency - Test	Type	Frequency - Self Resonant	Shielding	Mounting Type	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRN3015BTA-1R5M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	2.7 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	120 MHz	Shielded	Surface Mount	2.4 A	0.059 "	1.5 mm	43 mOhm	1 MHz	10	1.5 µH	-55 C	125 °C
Bourns Inc. SRN3015BTA-220M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	1 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	26 MHz	Shielded	Surface Mount	0.68 A	0.059 "	1.5 mm				22 µH	-55 C	125 °C	1 MHz 15	540 mOhm
Bourns Inc. SRN3015BTA-R47M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	3.7 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	246 MHz	Shielded	Surface Mount	4.3 A	0.059 "	1.5 mm		1 MHz	10	470 nH	-55 C	125 °C
Bourns Inc. SRN3015BTA-150M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	1.2 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	30 MHz	Shielded	Surface Mount	850 mA	0.059 "	1.5 mm	372 mOhm			15 µH	-55 C	125 °C	1 MHz 15
Bourns Inc. SRN3015BTA-470M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	700 mA	3030 Metric	1212	100 kHz	Drum Core Wirewound	18 MHz	Shielded	Surface Mount	460 mA	0.059 "	1.5 mm				47 µH	-55 C	125 °C	1 MHz 15	1.44 Ohm
Bourns Inc. SRN3015BTA-2R2M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	2.5 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	96 MHz	Shielded	Surface Mount	2.1 A	0.059 "	1.5 mm		1 MHz	10	2.2 µH	-55 C	125 °C		72 mOhm
Bourns Inc. SRN3015BTA-R24M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	5 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	360 MHz	Shielded	Surface Mount	6 A	0.059 "	1.5 mm	16 mOhm			240 nH	-55 C	125 °C	1 MHz 3
Bourns Inc. SRN3015BTA-R68M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	3.5 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	190 MHz	Shielded	Surface Mount	3.8 A	0.059 "	1.5 mm		1 MHz	10	0.68 µH	-55 C	125 °C		28 mOhm

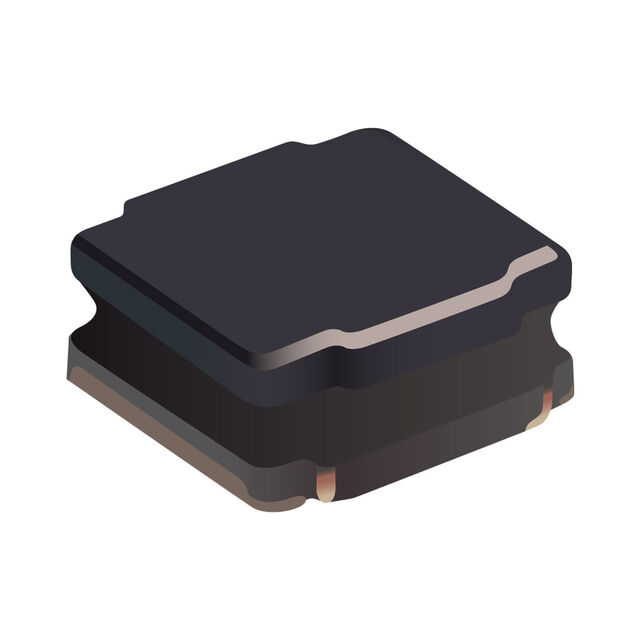

Bourns Inc. SRN3015BTA-100M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	1.5 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	45 MHz	Shielded	Surface Mount	1 A	0.059 "	1.5 mm	264 mOhm	1 MHz	10	10 µH	-55 C	125 °C
Bourns Inc. SRN3015BTA-6R8M	3 mm	0.118 in	3 mm	0.118 "	3015	AEC-Q200	20 %	Ferrite	1.7 A	3030 Metric	1212	100 kHz	Drum Core Wirewound	50 MHz	Shielded	Surface Mount	1.3 A	0.059 "	1.5 mm	206 mOhm	1 MHz	10	6.8 µH	-55 C	125 °C
