8520 Series

Catalog

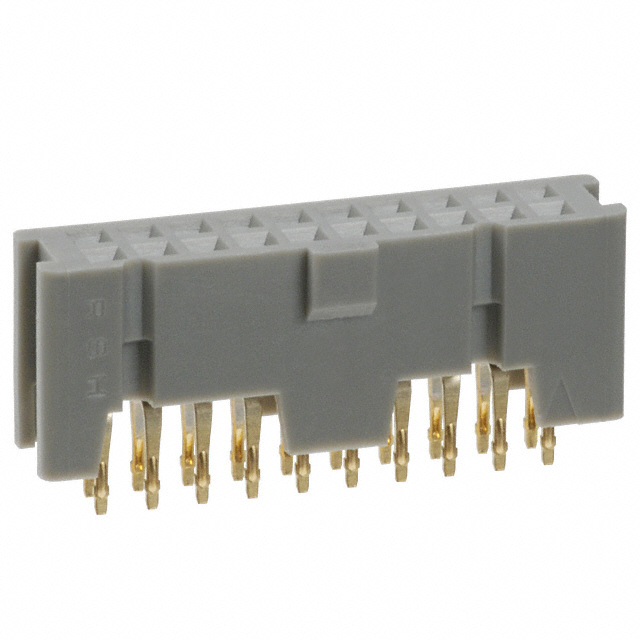

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT, 8500 SERIES

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Length - Post [custom]	Contact Length - Post	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Style	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Material Flammability Rating	Termination
