175974 Series

Catalog

CONN HEADER R/A 12POS 2.5MM

Part	Insulation Height	Insulation Height	Insulation Material	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Contact Material	Style	Number of Positions	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Fastening Type	Termination	Number of Rows	Insulation Color	Applications	Shrouding	Contact Finish - Post
TE Connectivity Raychem Cable Protection 175974-3	16.9 mm	0.665 in	Polybutylene Terephthalate (PBT)	7 mm	0.276 in	2.5 mm	0.098 in	Tab	Rectangular	Brass	Board to Cable/Wire	12	Through Hole Right Angle	All	0.146 in	3.7 mm	0.205 in	5.2 mm	-30 ░C	105 ░C	Varies by Wire Gauge	Mounting Flange	Locking Ramp	Solder	2	Black	Automotive General Purpose	Shrouded - 4 Wall	Tin

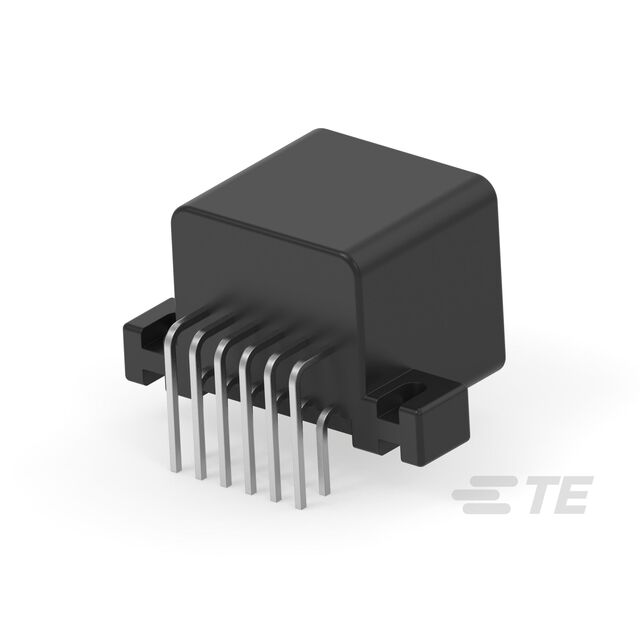

TE Connectivity Raychem Cable Protection 175974-2	16.9 mm	0.665 in	Polybutylene Terephthalate (PBT)	7 mm	0.276 in	2.5 mm	0.098 in	Tab	Rectangular	Brass	Board to Cable/Wire	12	Through Hole Right Angle	All	0.146 in	3.7 mm	0.205 in	5.2 mm	-30 ░C	105 ░C	Varies by Wire Gauge	Mounting Flange	Locking Ramp	Solder	2	Black	Automotive General Purpose	Shrouded - 4 Wall	Tin
