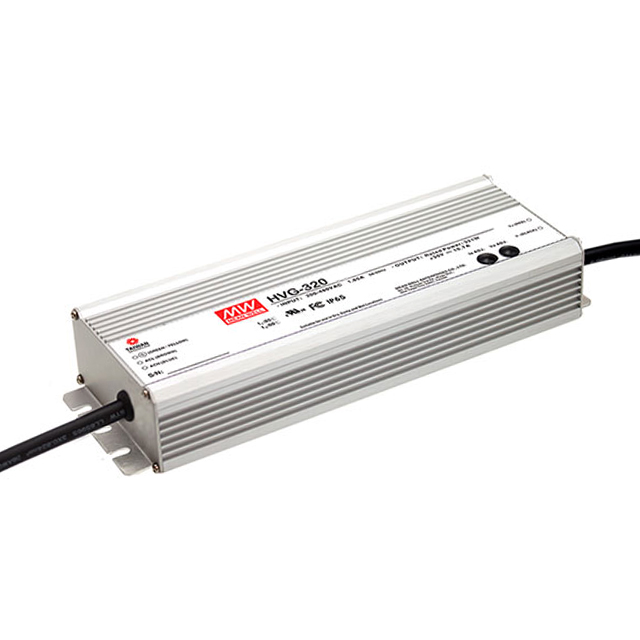

HVG-320 Series

Catalog

LED DVR CC/CV AC/DC 21-26V 13.4A

Part	Mounting Type	Voltage - Input (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Termination Style	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Topology	Ratings	Number of Outputs	Efficiency	Dimming	Voltage - Output	Approval Agency
MEAN WELL USA Inc. HVG-320-24A	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	13.4 A	26 V	21 V	Constant Current Voltage	322 W	85 °C	-40 C	180 VAC	AC DC Converter	IP65	1	92.5 %
MEAN WELL USA Inc. HVG-320-36AB	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	8.9 A			Constant Current Voltage	320 W	85 °C	-40 C	180 VAC	AC DC Converter	IP65	1	93.5 %	Analog PWM	36 V	cURus EAC FCC

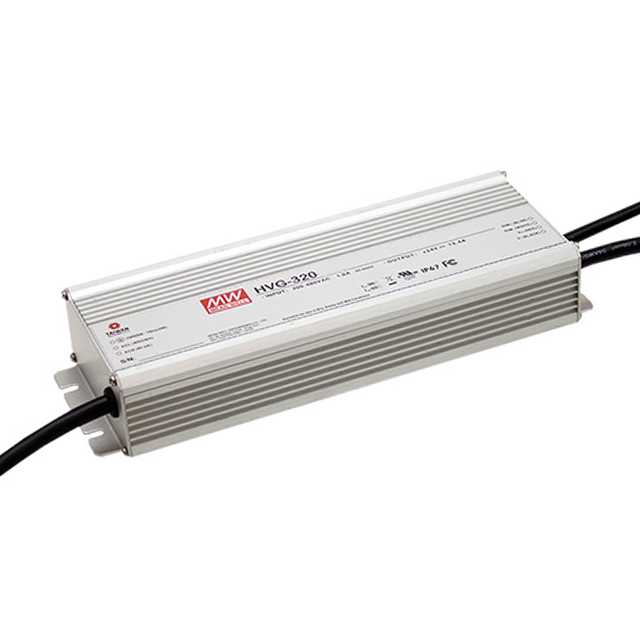

MEAN WELL USA Inc. HVG-320-30B	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	10.7 A	30 VDC	15 V	Constant Current Voltage	321 W	85 °C	-40 C	180 VAC	AC DC Converter	IP67	1	93 %	Analog PWM
MEAN WELL USA Inc. HVG-320-24B	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	13.4 A	24 V	12 V	Constant Current Voltage	322 W	85 °C	-40 C	180 VAC	AC DC Converter	IP67	1	92.5 %	Analog PWM
MEAN WELL USA Inc. HVG-320-54B	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	6 A	54 V	27 V	Constant Current Voltage	324 W	85 °C	-40 C	180 VAC	AC DC Converter	IP67	1	94 %	Analog PWM
MEAN WELL USA Inc. HVG-320-30A	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	10.7 A	32 VDC	26 V	Constant Current Voltage	321 W	85 °C	-40 C	180 VAC	AC DC Converter	IP65	1	93 %
MEAN WELL USA Inc. HVG-320-54A	Chassis Mount	528 VAC	OCP OTP OVP SCP	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	3750 VDC	Wire Leads	6 A	58 V	49 V	Constant Current Voltage	324 W	85 °C	-40 C	180 VAC	AC DC Converter	IP65	1	94 %
