86603CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

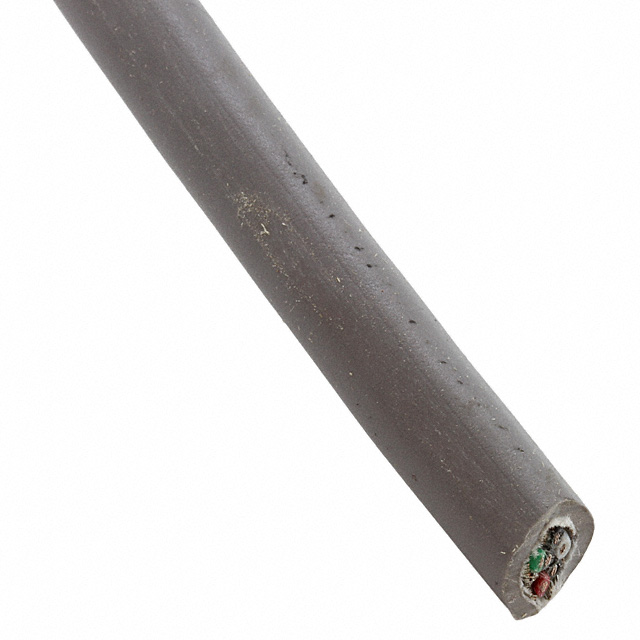

MULTI-PAIR 6CON 24AWG SLATE 100'
| Part | Shield Material | Shield Coverage | Jacket Color | Voltage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Cable Type | Number of Conductors | Jacket (Insulation) Material | Ratings | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Slate | 300 VDC | Biological Compatibility Drain Wire | 1.016 mm | 0.04 in | 24 AWG | Multi-Pair | 6 | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | Copper Tinned | 34 AWG | 10 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Braid Foil | 0.272 in | 6.91 mm | ||
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Slate | 300 VDC | Biological Compatibility Drain Wire | 1.016 mm | 0.04 in | 24 AWG | Multi-Pair | 6 | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | Copper Tinned | 34 AWG | 10 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Braid Foil | 0.272 in | 6.91 mm | ||
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Slate | 300 VDC | Biological Compatibility Drain Wire | 1.016 mm | 0.04 in | 24 AWG | Multi-Pair | 6 | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | Copper Tinned | 34 AWG | 10 | Poly-Vinyl Chloride (PVC) | Braid Foil | 0.272 in | 6.91 mm | 304.8 m | 1000 ft |
