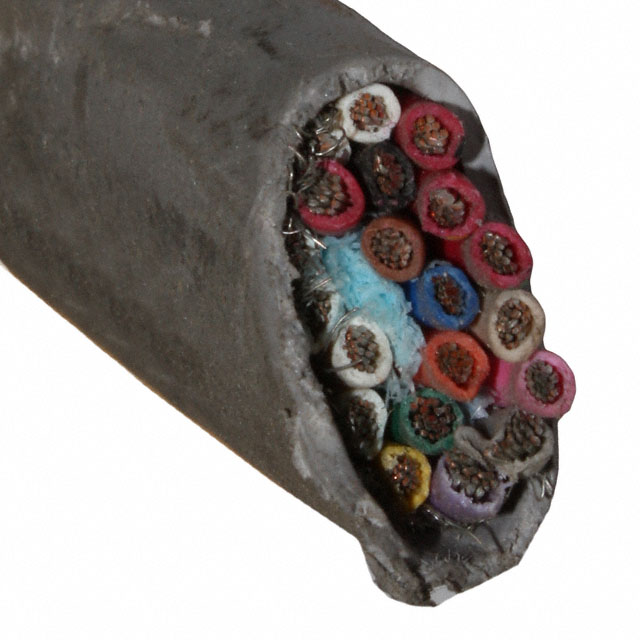

5180/20C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 20COND 16AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Conductor Material | Shield Type | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | 20 | Communication Control | 0.617 in | 15.67 mm | ISO 10993 UL Style 2464 | 19 | 0.0117 in | 16 AWG | 0.053 " | 1.346 mm | Multi-Conductor | 300 VDC | Copper Tinned | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | 20 | Communication Control | 0.617 in | 15.67 mm | ISO 10993 UL Style 2464 | 19 | 0.0117 in | 16 AWG | 0.053 " | 1.346 mm | Multi-Conductor | 300 VDC | Copper Tinned | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | 20 | Communication Control | 0.617 in | 15.67 mm | ISO 10993 UL Style 2464 | 19 | 0.0117 in | 16 AWG | 0.053 " | 1.346 mm | Multi-Conductor | 300 VDC | Copper Tinned | Braid Foil | Black | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
