RDTAR10 Series

Manufacturer: E-Switch

Catalog

CODED ROTARY SWITCHES 150MA 42VDC 10POS ARROW FLUSH

Part	Length [x]	Length [x]	Electrical Life	Mechanical Life	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Contact Finish	Circuit	Mounting Type	Termination Style	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Level	Pitch	Pitch

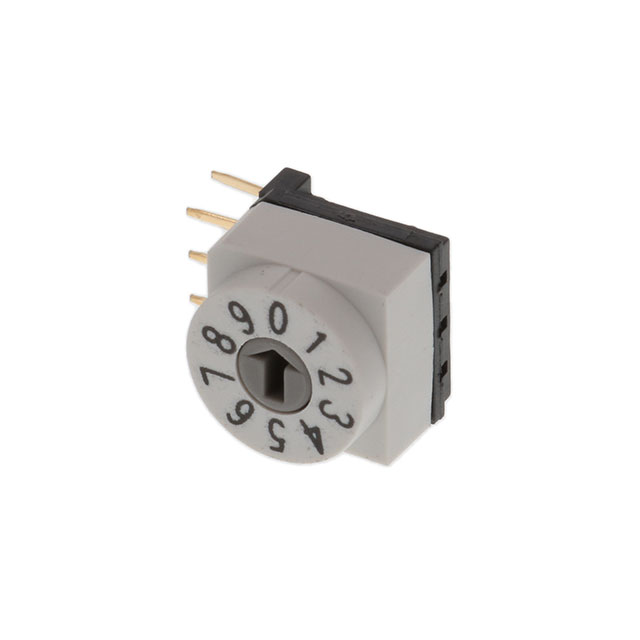

E-Switch RDTAR10R2T	0.394 in	10 mm	10000 Cycles	10000 Steps	42 VDC	0.394 in	10 mm	Gold	BCD	Right Angle Through Hole	PC Pin	10	IP67 - Dust Tight Waterproof	85 °C	-40 C	Rotary for Tool	Flush Recessed	2.54 mm	0.1 "

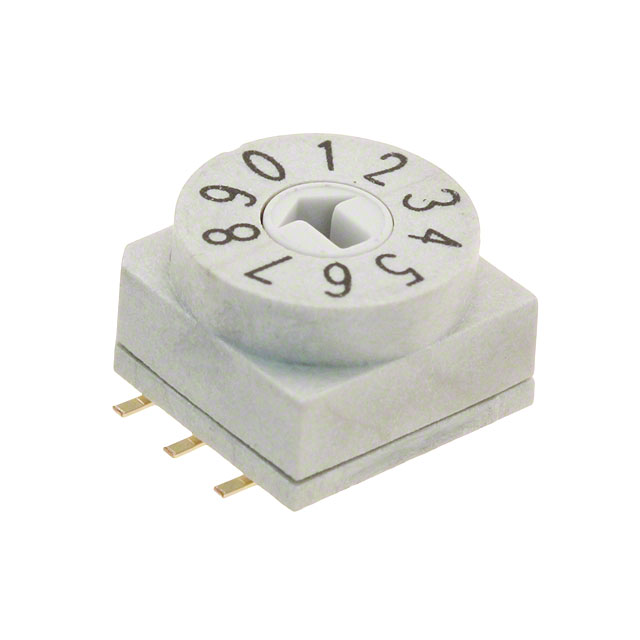

E-Switch RDTAR10S1R	0.394 in	10 mm	10000 Cycles	10000 Steps	42 VDC	0.264 in	6.7 mm	Gold	BCD	Surface Mount	Gull Wing	10	IP67 - Dust Tight Waterproof	125 °C	-60 °C	Rotary for Tool	Flush Recessed	2.54 mm	0.1 "
E-Switch RDTAR10S2R	0.394 in	10 mm	10000 Cycles	10000 Steps	42 VDC	0.264 in	6.7 mm	Gold	BCD	Surface Mount	Gull Wing	10	IP67 - Dust Tight Waterproof	125 °C	-60 °C	Rotary for Tool	Flush Recessed	2.54 mm	0.1 "
E-Switch RDTAR10R1T	0.394 in	10 mm	10000 Cycles	10000 Steps	42 VDC	0.394 in	10 mm	Gold	BCD	Right Angle Through Hole	PC Pin	10	IP67 - Dust Tight Waterproof	85 °C	-40 C	Rotary for Tool	Flush Recessed	2.54 mm	0.1 "
