3404.0019 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

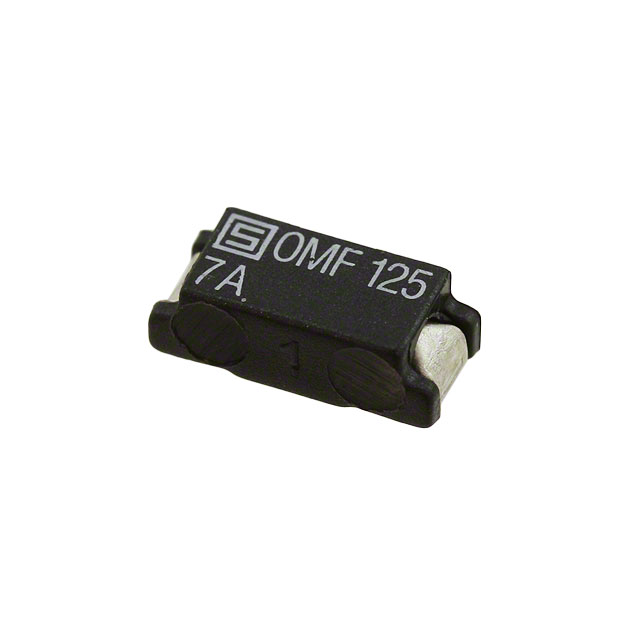

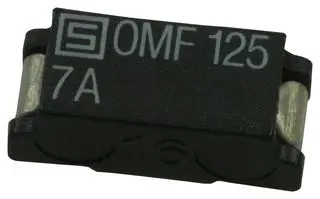

FUSE, SURFACE MOUNT, 7 A, FAST ACTING, 125 VAC, 125 VDC, 7.4MM X 3.1MM, OMF 125 SERIES
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - AC | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Fuse Type | Mounting Type | Voltage Rating - DC | Melting I²t | Package / Case | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 125 V | Fast Blow | -55 C | 125 °C | 100 A | Board Mount (Cartridge Style Excluded) | Surface Mount | 125 VDC | 16 | 2-SMD J-Lead | 7 A |
