LAB4/0 Series
Manufacturer: Panduit Corp
Beta
⌘K

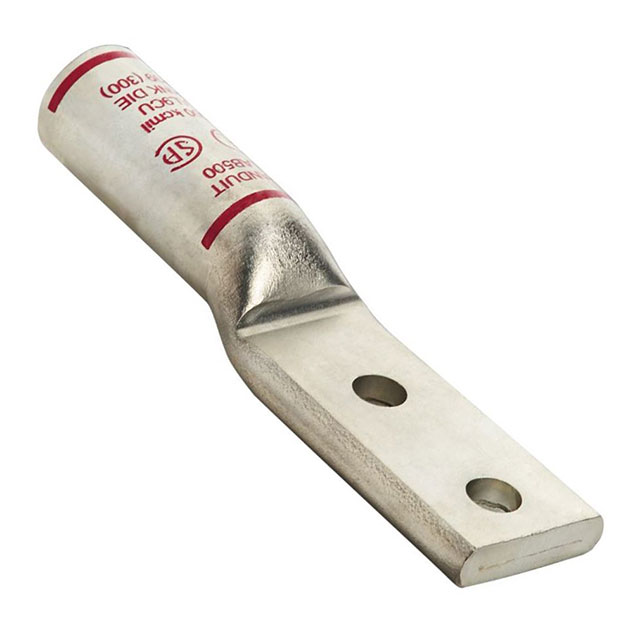

ALUMINUM COMPRESSION LUG, 2 HOLE
| Part | Contact Finish | Tab Thickness | Tab Thickness | Width - Outer Edges | Width - Outer Edges | Mounting Type | Wire Gauge | Insulation | Terminal Type | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Color | Contact Material | Terminal Style | Termination | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Tin | 7.87 mm | 0.31 in | 1.19 mm | 0.047 in | Free Hanging (In-Line) | 4 aught AWG | Non-Insulated | Grounding Lug | 0.53 in | 13.46 mm | White | Aluminum | Two Stud Holes | Crimp | 0.88 in | 22.35 mm | 13.97 mm | 0.55 " | 1/2 Stud |
