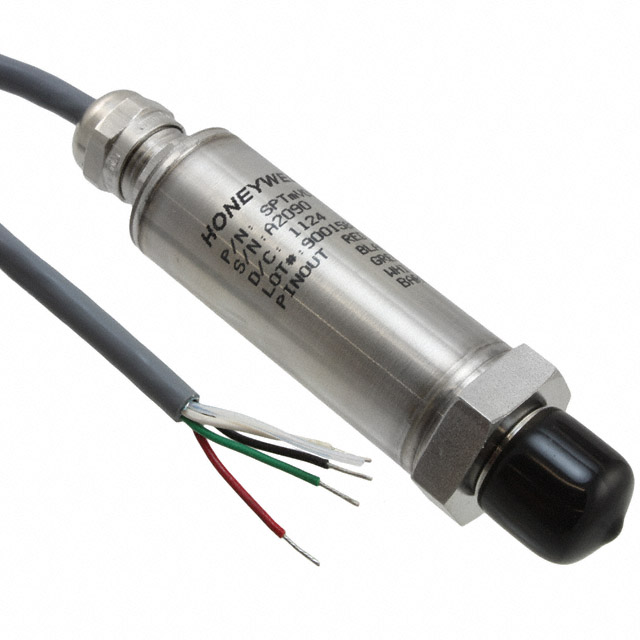

SPTMV0100 Series

Catalog

PRESSURE-JZ STAINLESS

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Output Type	Features	Output [Min]	Output [Max]	Port Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Pressure Type
Honeywell Sensing and Productivity Solutions SPTMV0100PA5W02	2068.43 kPa	300 PSI	Cylinder	Cable 2'	15 V	10 VDC	Industrial Automation	689.48 kPa	100 PSI	85 °C	-40 °C	0.25 %	Wheatstone Bridge	Temperature Compensated	0 mV	100 mV	Threaded	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions SPTMV0100PG5B
Honeywell Sensing and Productivity Solutions SPTMV0100PG5W02	2068.43 kPa	300 PSI	Cylinder	Cable 2'	15 V	10 VDC	Industrial Automation	689.48 kPa	100 PSI	85 °C	-40 °C	0.25 %	Wheatstone Bridge	Temperature Compensated	0 mV	100 mV	Threaded	NPT	0.25 "	6.35 mm	Male	Vented Gauge
