LZC-03 Series

Catalog

LED RGBW 624/525/457/6658K SMD

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Supplier Device Package	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature - Test	Color	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]

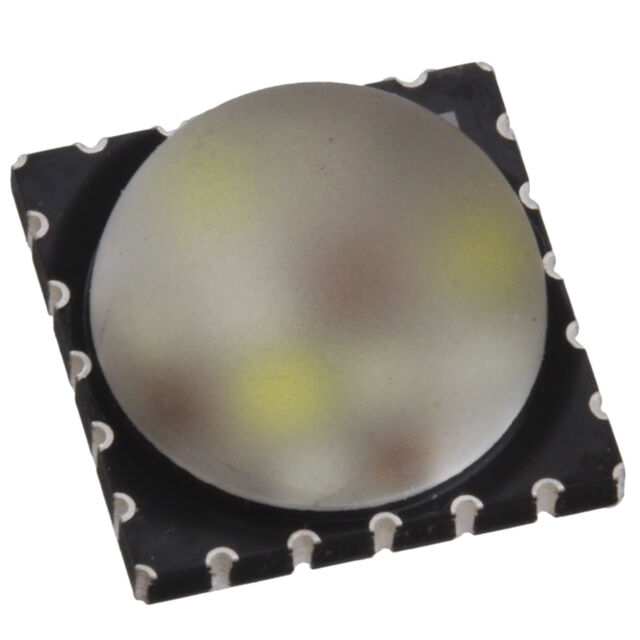

ams-OSRAM USA INC. LZC-03MD07-0000	0.7 °C/W	12 lm/W 53 lm/W 69 lm/W 71 lm/W	SMD	89 lm	340 lm	525 lm	390 lm	7 V 10.5 V 10.5 V 10.5 V	5.6 mm	0.22 in	25 °C	Blue Green Red White	Surface Mount	3535 (9090 Metric)	9 mm	9 mm	0.354 in	0.354 in	95 °	457 nm 525 nm 624 nm 6658 K	1 A	1 A	1 A	1 A
