LMR36506-Q1 Series

3-V to 65-V, 0.6-A buck converter optimized for size and light load efficiency

Catalog

3-V to 65-V, 0.6-A buck converter optimized for size and light load efficiency

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Topology	Function	Output Configuration	Voltage - Input (Min) [Min]	Number of Outputs	Grade	Current - Output	Package / Case	Qualification	Mounting Type	Voltage - Output (Min/Fixed)	Frequency - Switching	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Output Type	Voltage - Output (Max) [Max]
Texas Instruments LMR36506MSC3RPERQ1	65 V	-40 °C	125 °C	1.81 mOhm	Buck	Step-Down	Positive	3 V	1	Automotive	600 mA	9-PowerVFQFN	AEC-Q100	Surface Mount Wettable Flank	3.3 V	2.2 MHz	9-VQFN-HR (2x2)
Texas Instruments LMR36506RS3QRPERQ1	65 V	-40 °C	125 °C	1.81 mOhm	Buck	Step-Down	Positive	3 V	1	Automotive	600 mA	9-PowerVFQFN	AEC-Q100	Surface Mount Wettable Flank	3.3 V		9-VQFN-HR (2x2)	2.2 MHz	200 kHz
Texas Instruments LMR36506R3RPER	65 V	-40 °C	150 °C	1.81 mOhm	Buck	Step-Down	Positive	3 V	1		600 mA	9-PowerVFQFN		Surface Mount Wettable Flank	3.3 V		9-VQFN-HR (2x2)	2.2 MHz	200 kHz

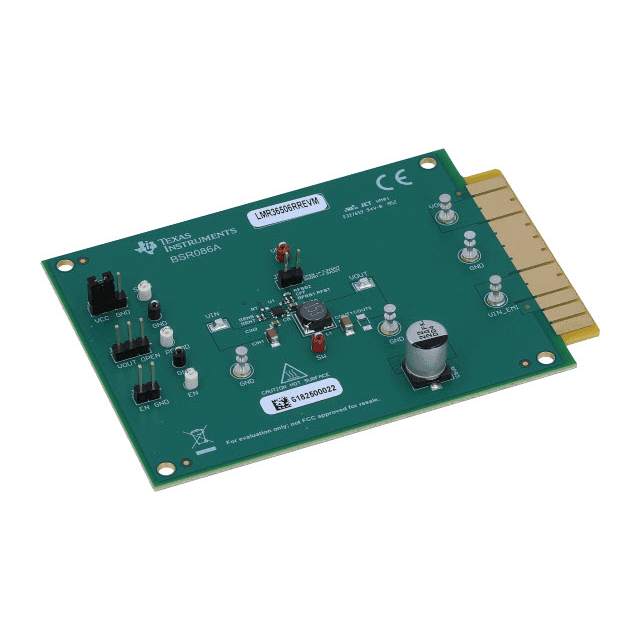

Texas Instruments LMR36506RREVM											600 mA					1 MHz				Fully Populated	3.3 V	Non-Isolated	1	Board(s)	Buck	DC/DC Step Down	5.5 V	65 V	LMR36506
Texas Instruments LMR36506RF3RPER	65 V	-40 °C	150 °C	1.81 mOhm	Buck	Step-Down	Positive	3 V	1		600 mA	9-PowerVFQFN		Surface Mount Wettable Flank	3.3 V		9-VQFN-HR (2x2)	2.2 MHz	200 kHz
Texas Instruments LMR36506MSCQRPERQ1	65 V	-40 °C	125 °C		Buck	Step-Down	Positive	3 V	1	Automotive	600 mA	9-PowerVFQFN	AEC-Q100	Surface Mount Wettable Flank	1 V	2.2 MHz	9-VQFN-HR (2x2)													Adjustable	65 V
Texas Instruments LMR36506RFRPER	65 V	-40 °C	150 °C		Buck	Step-Down	Positive	3 V	1		600 mA	9-PowerVFQFN		Surface Mount Wettable Flank	1 V		9-VQFN-HR (2x2)	2.2 MHz	200 kHz											Adjustable	65 V

Catalog

3-V to 65-V, 0.6-A buck converter optimized for size and light load efficiency

Key Features

• AEC-Q100-qualified for automotive applications:Device temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system design>80% efficiency at 1 mA4 µA Iq(switching) at 24 VINto 3.3 VOUT(fixed output option)Miniature solution size and low component cost2-mm × 2-mm HotRod™ package with wettable flanksInternal compensationDesigned for automotive applications:Junction temperature range –40°C to +150°CPseudo-random spread spectrum compatible with CISPR 25 EMI standardWide input voltage range: 3.0 V (falling threshold) to 65 VAdjustable, 3.3-V and 5-V fixed output voltage options availableSynchronizable with MODE/SYNC pin variantAdjustable FSW: 200 kHz to 2.2 MHz with RT pin variantPin compatible withLMR36503-Q1(65 V, 300 mA)AEC-Q100-qualified for automotive applications:Device temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system design>80% efficiency at 1 mA4 µA Iq(switching) at 24 VINto 3.3 VOUT(fixed output option)Miniature solution size and low component cost2-mm × 2-mm HotRod™ package with wettable flanksInternal compensationDesigned for automotive applications:Junction temperature range –40°C to +150°CPseudo-random spread spectrum compatible with CISPR 25 EMI standardWide input voltage range: 3.0 V (falling threshold) to 65 VAdjustable, 3.3-V and 5-V fixed output voltage options availableSynchronizable with MODE/SYNC pin variantAdjustable FSW: 200 kHz to 2.2 MHz with RT pin variantPin compatible withLMR36503-Q1(65 V, 300 mA)

Description

The LMR36506-Q1 is the industry’s smallest 65 V, 0.6 A synchronous step-down DC/DC converter in 2-mm x 2-mm HotRod™ package. This easy-to-use converter can handle input voltage transients up to 70 V, provide excellent EMI performance and support fixed 3.3 V, 5 V and other adjustable output voltages. The LMR36506-Q1 uses peak current mode control architecture with internal compensation and maintains stable operation with minimal output capacitance. The wide input operating range of the LMR36506-Q1 helps it remain functional during a deep input voltage sag condition, making it an excellent choice for automotive applications withstanding severe cold crank start impulses. The PGOOD flag in the LMR36506-Q1 provides precise indication of the output voltage status, eliminating the requirement for an external supervisor. A seamless transition from FPWM to PFM, with an ultra-low standby quiescent current allows the LMR36506-Q1 to support much higher system efficiency at low output loads. The MODE/SYNC pin variant helps to synchronize the LMR36506-Q1 to an external clock. With the right resistor selection, the LMR36506-Q1 RT pin variant can also be externally programmed to any desired switching frequency of operation. The rich feature set of the LMR36506-Q1 is designed to simplify implementation for a wide range of automotive end equipments. The LMR36506-Q1 is the industry’s smallest 65 V, 0.6 A synchronous step-down DC/DC converter in 2-mm x 2-mm HotRod™ package. This easy-to-use converter can handle input voltage transients up to 70 V, provide excellent EMI performance and support fixed 3.3 V, 5 V and other adjustable output voltages. The LMR36506-Q1 uses peak current mode control architecture with internal compensation and maintains stable operation with minimal output capacitance. The wide input operating range of the LMR36506-Q1 helps it remain functional during a deep input voltage sag condition, making it an excellent choice for automotive applications withstanding severe cold crank start impulses. The PGOOD flag in the LMR36506-Q1 provides precise indication of the output voltage status, eliminating the requirement for an external supervisor. A seamless transition from FPWM to PFM, with an ultra-low standby quiescent current allows the LMR36506-Q1 to support much higher system efficiency at low output loads. The MODE/SYNC pin variant helps to synchronize the LMR36506-Q1 to an external clock. With the right resistor selection, the LMR36506-Q1 RT pin variant can also be externally programmed to any desired switching frequency of operation. The rich feature set of the LMR36506-Q1 is designed to simplify implementation for a wide range of automotive end equipments.
