TR9CE9000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

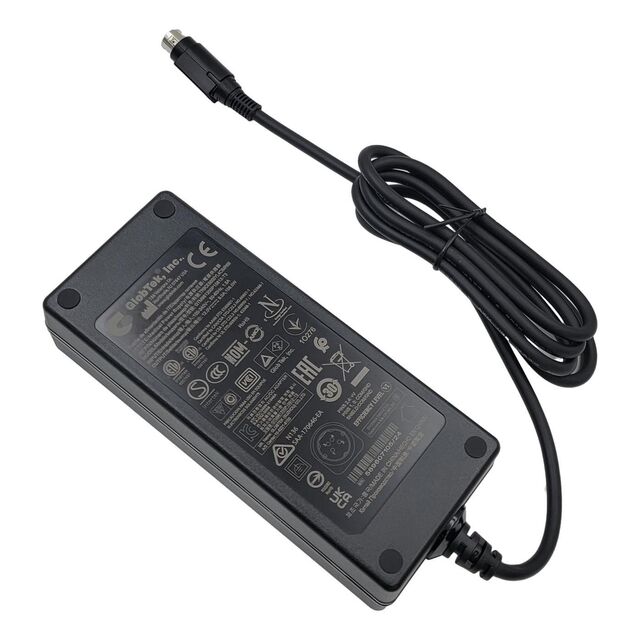

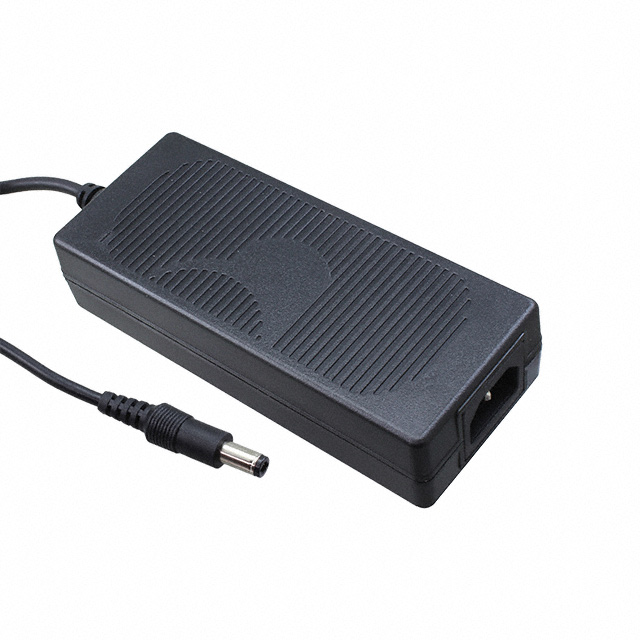

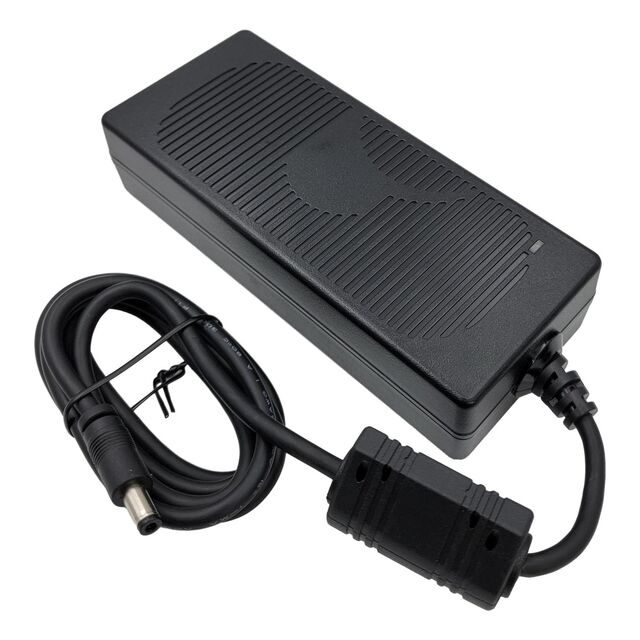

AC/DC DESKTOP ADAPTER 12V 108W
| Part | Efficiency | Cord Length | Cord Length | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Standard Number | Form | No Load Power Consumption | Output Connector | Input Connector | Voltage - Output | Approval Agency | Current - Output (Max) [Max] | Power (Watts) | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [x] | Output Connector [diameter] | Polarization | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Level VI | 1.2 m | 47.2 in | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Desktop (Class I) | 150 mW | Power DIN 4 Pin | IEC 320-C14 | 12 V | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | 9 A | 108 W | Cord (Sold Separately) | -20 ░C | 40 °C | International | 264 VAC | 90 VAC | ||||||
 GlobTek, Inc. | Level VI | 1.2 m | 47.2 in | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Desktop (Class I) | 150 mW | Barrel Plug | IEC 320-C14 | 12 V | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | 9 A | 108 W | Cord (Sold Separately) | -20 ░C | 40 °C | International | 264 VAC | 90 VAC | 11 mm | 2.1 mm 5.5 mm | Positive Center | |||
 GlobTek, Inc. | CoC Tier 2 Level VI | 1.2 m | 47.2 in | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | Desktop (Class I) | 150 mW | Barrel Plug R/A | IEC 320-C14 | 12 V | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | 9 A | 108 W | Cord (Sold Separately) | -10 °C | 40 °C | International | 264 VAC | 90 VAC | Positive Center | 5.5 mm | 11 mm | 2.5 mm | |||
 GlobTek, Inc. | Level VI | 1.2 m | 47.2 in | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Desktop (Class I) | 150 mW | Barrel Plug | IEC 320-C14 | 12 V | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | 9.2 A | 110 W | Cord (Sold Separately) | -20 ░C | 40 °C | International | 264 VAC | 90 VAC | 11 mm | 2.5 mm 5.5 mm | Positive Center |
