DH22U Series

Catalog

SWITCH PB DPDT 3A 125V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Type	Actuator Type	Voltage Rating - AC	Circuit	Termination Style	Illumination Type, Color	Ingress Protection	Switch Function	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Current Rating (Amps)	Features
CIT Relay and Switch DH22U2NBBBN	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	DPDT	Solder Lug	Blue LED	IP67 - Dust Tight Waterproof	On-Mom	Black	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A

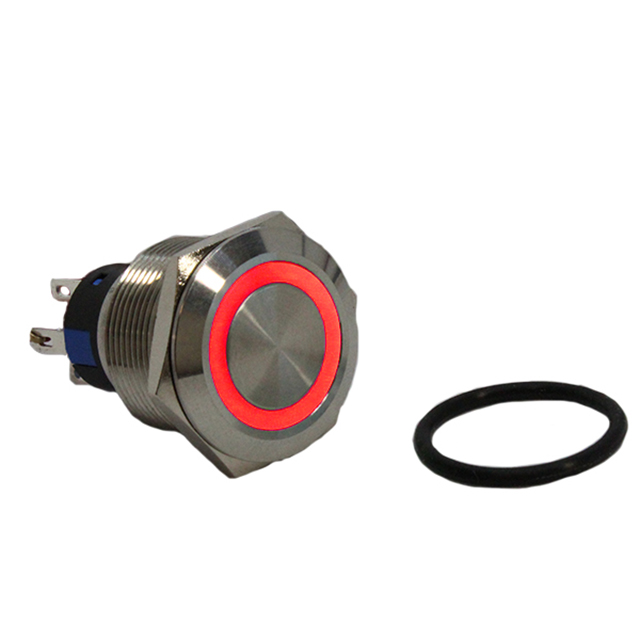

CIT Relay and Switch DH22U1NBSRN	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	SPDT	Solder Lug	LED Red	IP67 - Dust Tight Waterproof	On-Mom	Silver	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A	Stainless Steel

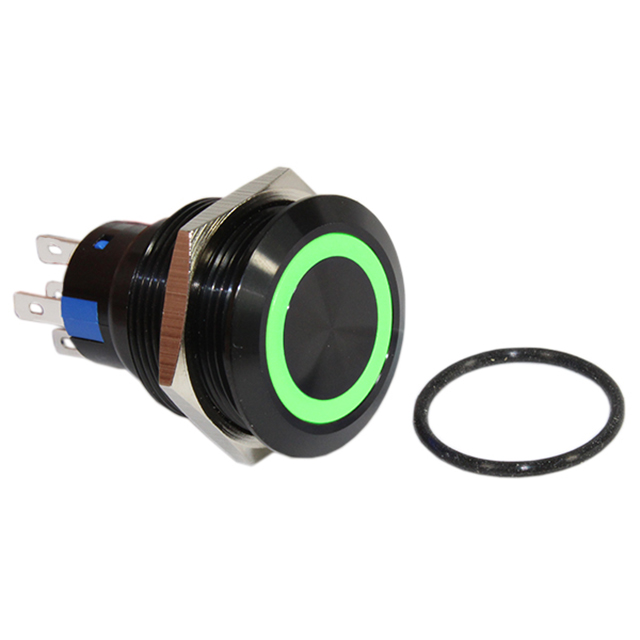

CIT Relay and Switch DH22U1LBBGN	50000 Cycles	500000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	SPDT	Solder Lug	Green LED	IP67 - Dust Tight Waterproof	On-On	Black	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A
CIT Relay and Switch DH22U1LBSRN	50000 Cycles	500000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	SPDT	Solder Lug	LED Red	IP67 - Dust Tight Waterproof	On-On	Silver	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A	Stainless Steel
CIT Relay and Switch DH22U1LBBBN	50000 Cycles	500000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	SPDT	Solder Lug	Blue LED	IP67 - Dust Tight Waterproof	On-On	Black	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A
CIT Relay and Switch DH22U2NABZZ	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal	Button Flush Round	125 V	DPDT	Solder Lug		IP67 - Dust Tight Waterproof	On-Mom	Black	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A
CIT Relay and Switch DH22U2NBBGN	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	DPDT	Solder Lug	Green LED	IP67 - Dust Tight Waterproof	On-Mom	Black	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A

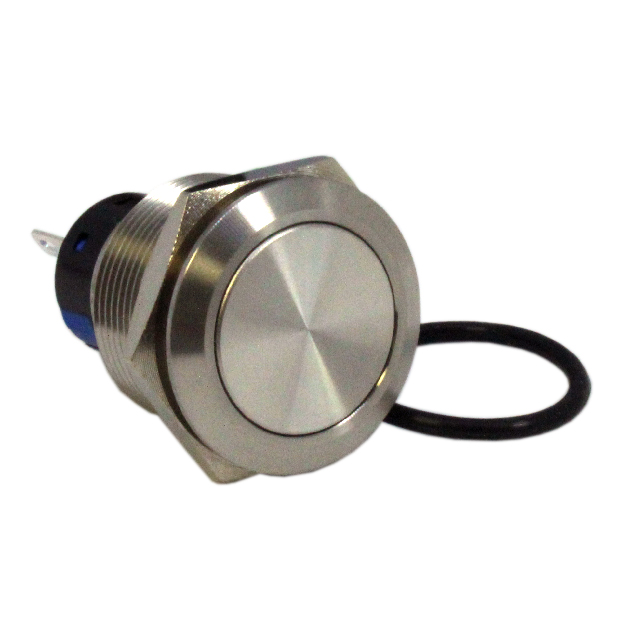

CIT Relay and Switch DH22U1LASZZ	50000 Cycles	500000 Cycles	22 mm	Anti-Vandal	Button Flush Round	125 V	SPDT	Solder Lug		IP67 - Dust Tight Waterproof	On-On	Silver	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A	Stainless Steel
CIT Relay and Switch DH22U2NASZZ	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal	Button Flush Round	125 V	DPDT	Solder Lug		IP67 - Dust Tight Waterproof	On-Mom	Silver	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A	Stainless Steel
CIT Relay and Switch DH22U1NBSBN	50000 Cycles	1000000 Cycles	22 mm	Anti-Vandal Illuminated	Button Flush Round	125 V	SPDT	Solder Lug	Blue LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	55 °C	-20 ░C	Panel Mount Front	No Marking	3 A	Stainless Steel
