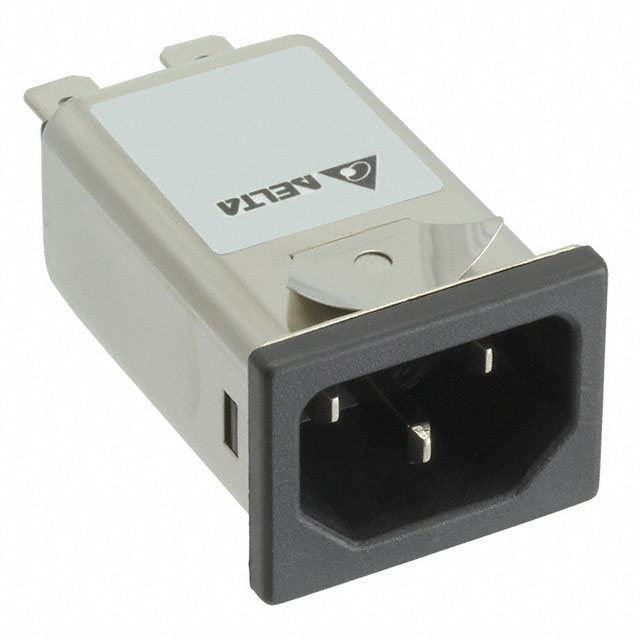

06GENG Series
Manufacturer: Delta Electronics
Beta
⌘K
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Filter Type | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Accomodates a Fuse | Mounting Type | Current Rating - Appliance Inlet | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Termination | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Style | Approval Agency | Current Rating - Filter | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Filtered (EMI RFI) - Commercial Medical | 115 VAC | 250 VAC | Panel Mount Snap-In | 6 A | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | Quick Connect | 21.9 mm | 28.45 mm | IEC 320-C14 | CSA UL VDE | 6 A | Receptacle Male Blades | ||
 Delta Electronics | Filtered (EMI RFI) - Commercial | 115 VAC | 250 VAC | Panel Mount Snap-In | 6 A | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | Quick Connect | 21.9 mm | 28.45 mm | IEC 320-C14 | CSA UL VDE | 6 A | Receptacle Male Blades | ||
Delta Electronics | Filtered (EMI RFI) - Commercial | 115 VAC | 250 VAC | Panel Mount Snap-In | 6 A | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | Quick Connect | 21.9 mm | 28.45 mm | IEC 320-C14 | CSA UL VDE | 6 A | Receptacle Male Blades | Bleed Resistor |
