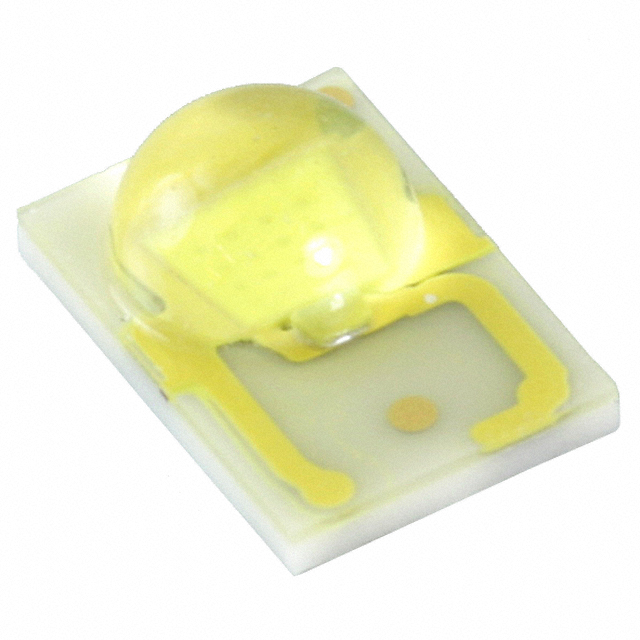

LXML Series

Manufacturer: Lumileds

Catalog

RED

Part	Wavelength	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Color	Lumens/Watt @ Current - Test	Current - Max [Max]	Temperature - Test	Viewing Angle	Thermal Resistance of Package	CCT (K) [Min]	CCT (K) [Max]	Flux @ 25°C, Current - Test	Supplier Device Package	Wavelength [Min]	Wavelength [Max]
Lumileds LXML-PD01-0040	633 nm	2.9 V	46 lm	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Red	45 lm/W	700 mA	25 °C	125 °
Lumileds LXML-PB01-0023	473 nm	2.95 V	28 lm	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Blue	27 lm/W	1 A	25 °C	125 °
Lumileds LXML-PH01-0060	615 nm	2.9 V	62 lm	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Red-Orange	61 lm/W	700 mA	25 °C	125 °
Lumileds LXML-PWN1-0120		3 V		1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Neutral White	118 lm/W	1 A		120 °	10 °C/W	3500 K	4500 K	124 lm
Lumileds LXML-PM01-0090	530 nm	2.9 V	95 lm	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Green	94 lm/W	1 A	25 °C	125 °	10 °C/W				SMD
Lumileds LXML-PF01		1.8 V	260 mW	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Red		700 mA	25 °C	125 °
Lumileds LXML-PM01-0130	530 nm	3.21 V	102 lm	1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in	350 mA	Green	91 lm/W	1 A	85 °C	125 °						520 nm	540 nm
Lumileds LXML-PB02-0100				1812 (4532 Metric)	Surface Mount	0.177 in	4.49 mm	3.05 mm	0.12 in	2.1 mm	0.083 in											SMD
