D352 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY TELECOM DPDT 2A 12V

Part	Coil Resistance	Mounting Type	Termination Style	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Current	Load - Max Switching	Coil Type	Relay Type	Switching Voltage [Max]	Contact Material	Coil Voltage	Release Time	Contact Rating (Current)	Operate Time	Must Operate Voltage
TE Connectivity AMP Connectors D3526N	720 Ohms	Surface Mount	Gull Wing	1.2 VDC	-55 C	85 °C	DPDT (2 Form C)	16.7 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)	12 VDC	5 ms	2 A	5 ms	9 VDC
TE Connectivity AMP Connectors 9-1462036-3	9.6 kOhms	Surface Mount	Gull Wing	4.8 VDC	-55 C	85 °C	DPDT (2 Form C)	5 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)	48 VDC	5 ms	2 A	5 ms	36 VDC
TE Connectivity AMP Connectors D3521N	45 Ohms	Surface Mount	Gull Wing	0.3 VDC	-55 C	85 °C	DPDT (2 Form C)	66.7 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)		5 ms	2 A	5 ms	2.25 VDC
TE Connectivity AMP Connectors D3529N	80 Ohms	Surface Mount	Gull Wing	0.4 VDC	-55 C	85 °C	DPDT (2 Form C)	50 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)	4 VDC	5 ms	2 A	5 ms	3 VDC
TE Connectivity AMP Connectors D3523W	125 Ohms	Surface Mount	Gull Wing	0.5 VDC	-55 C	85 °C	DPDT (2 Form C)	40 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)	5 VDC	5 ms	2 A	5 ms	3.75 VDC

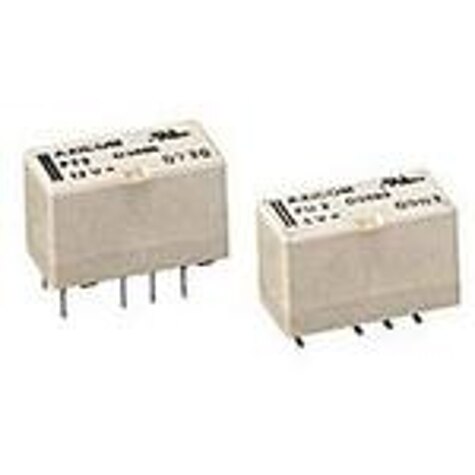

TE Connectivity AMP Connectors D3521W	45 Ohms	Surface Mount	Gull Wing	0.3 VDC	-55 C	85 °C	DPDT (2 Form C)	66.7 mA	440 W 500 VA	Non Latching	Telecom	220 VDC 250 VAC	Gold (Au) Palladium (Pd) Ruthenium (Ru)		5 ms	2 A	5 ms	2.25 VDC
