C146 10R016 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN HOOD TOP DUAL SZE16 M25
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Size | Thread Size | Style | Lock Location | Ingress Protection | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

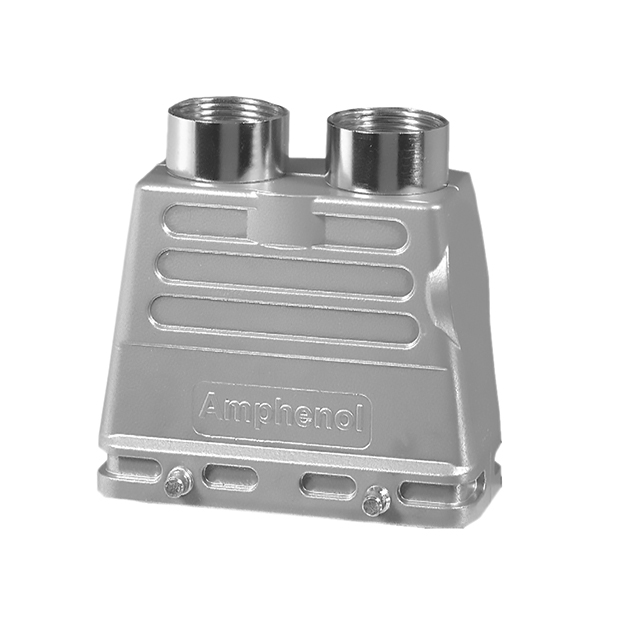

 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M25 | Top Entry Dual | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | |

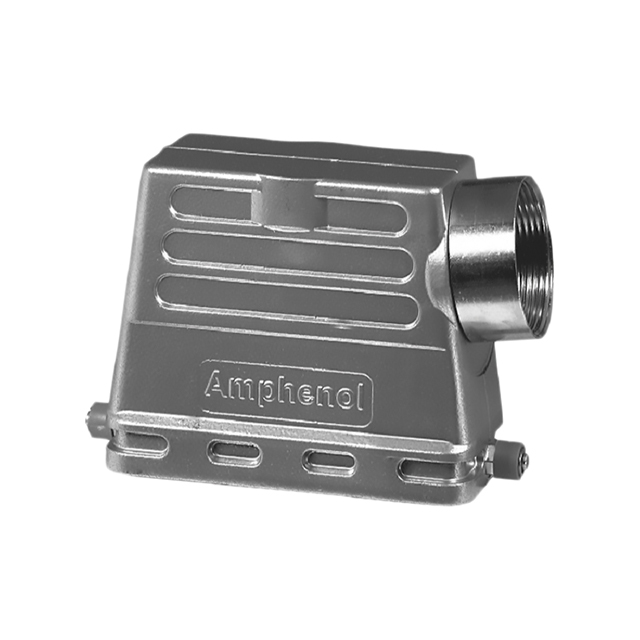

 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M32 | Side Entry | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.441 " | 62 mm | 1.693 " | 93.5 mm | Aluminum Alloy Die Cast |

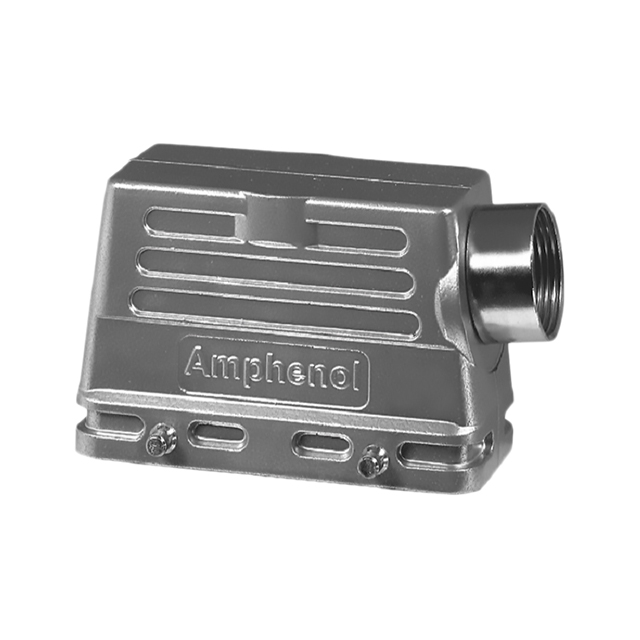

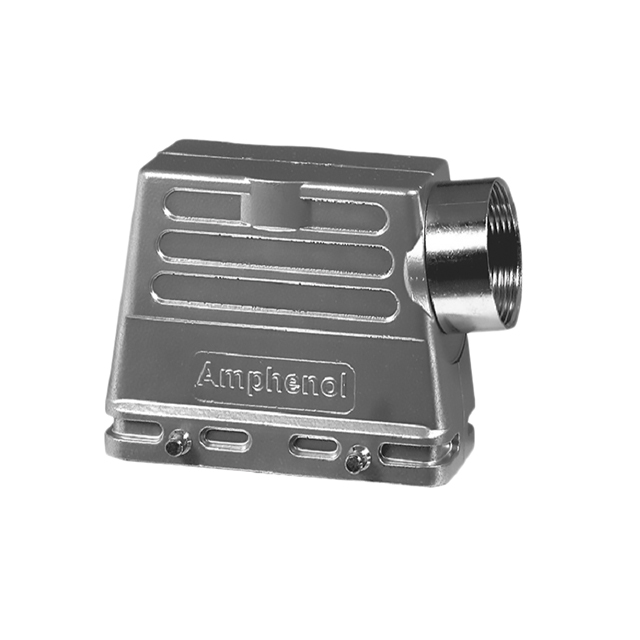

 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M25 | Side Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Aluminum Die Cast |
 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | Side Entry | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Aluminum Die Cast | |
 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M32 | Top Entry Dual | Locking Clip (2) on Hood | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Aluminum Die Cast |
 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M25 | Side Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.441 " | 62 mm | 1.693 " | 93.5 mm | Aluminum Alloy Die Cast |
 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | M32 | Side Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Aluminum Die Cast |
 Amphenol Tuchel Industrial | -40 C | 100 °C | Hood | E16 | Side Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Aluminum Die Cast |
