PPPC112 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 22POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Material Flammability Rating	Mounting Type	Fastening Type	Number of Positions	Termination	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish - Post	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

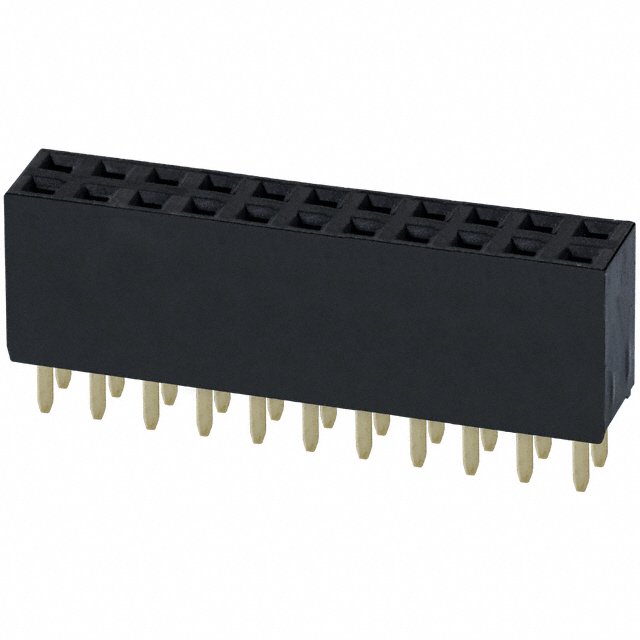

Sullins Connector Solutions PPPC112LFBN-RC	Flash	Square	Phosphor Bronze	Polyester	UL94 V-0	Through Hole	Push-Pull	22	Solder	All	0.126 "	3.2 mm	3 A	Gold	Gold	250 V	-40 C	105 ░C	0.1 "	2.54 mm	Female Socket	Flash	Black	0.335 "	8.51 mm	Header	0.1 in	2.54 mm	2
Sullins Connector Solutions PPPC112LFBN	Flash	Square	Phosphor Bronze	Polyester	UL94 V-0	Through Hole	Push-Pull	22	Solder	All	0.126 "	3.2 mm	3 A	Gold	Gold	250 V	-40 C	105 ░C	0.1 "	2.54 mm	Female Socket	Flash	Black	0.335 "	8.51 mm	Header	0.1 in	2.54 mm	2

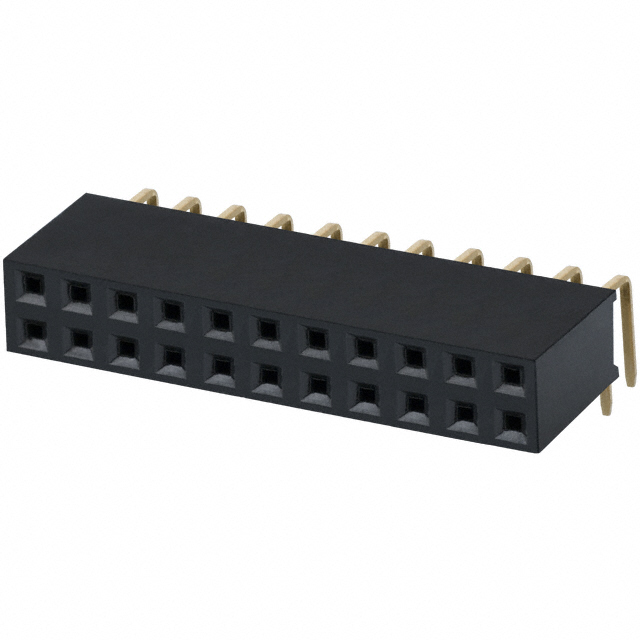

Sullins Connector Solutions PPPC112LJBN	Flash	Square	Phosphor Bronze	Polyester	UL94 V-0	Right Angle Through Hole	Push-Pull	22	Solder	All			3 A	Gold	Gold	250 V	-40 C	105 ░C	0.1 "	2.54 mm	Female Socket	Flash	Black			Header	0.1 in	2.54 mm	2	0.124 in	3.15 mm	0.2 in	5.08 mm
Sullins Connector Solutions PPPC112LJBN-RC	Flash	Square	Phosphor Bronze	Polyester	UL94 V-0	Right Angle Through Hole	Push-Pull	22	Solder	All			3 A	Gold	Gold	250 V	-40 C	105 ░C	0.1 "	2.54 mm	Female Socket	Flash	Black			Header	0.1 in	2.54 mm	2	0.124 in	3.15 mm	0.2 in	5.08 mm
