FSCM0565 Series

Catalog

IC OFFLINE SW FLYBACK D2PAK-6

Part	Internal Switch(s)	Voltage - Start Up	Power (Watts)	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Breakdown	Duty Cycle	Supplier Device Package	Topology	Mounting Type	Fault Protection	Output Isolation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching
ON Semiconductor FSCM0565RJX		12 V	65 W	20 V	8 V	650 V	80 %	D2PAK-6	Flyback	Surface Mount	Current Limiting Over Load Over Temperature Over Voltage	Isolated	D2PAK TO-263-7 TO-263CB	85 C	-25 °C	66 kHz

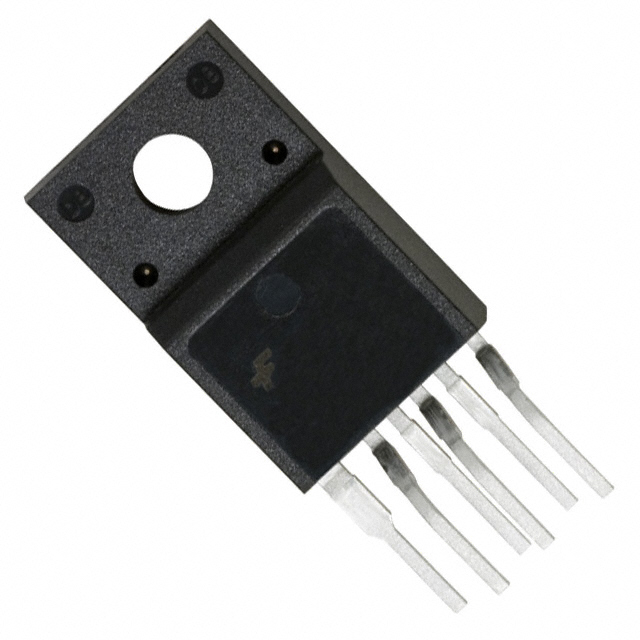

ON Semiconductor FSCM0565RGWDTU		12 V	85 W	20 V	8 V	650 V	80 %	TO-220F-6L (Forming)	Flyback	Through Hole	Current Limiting Over Load Over Temperature Over Voltage	Isolated	TO-220-6 Full Pack Formed Leads	85 C	-25 °C	66 kHz
