503419 Series
Manufacturer: Molex
Beta
⌘K

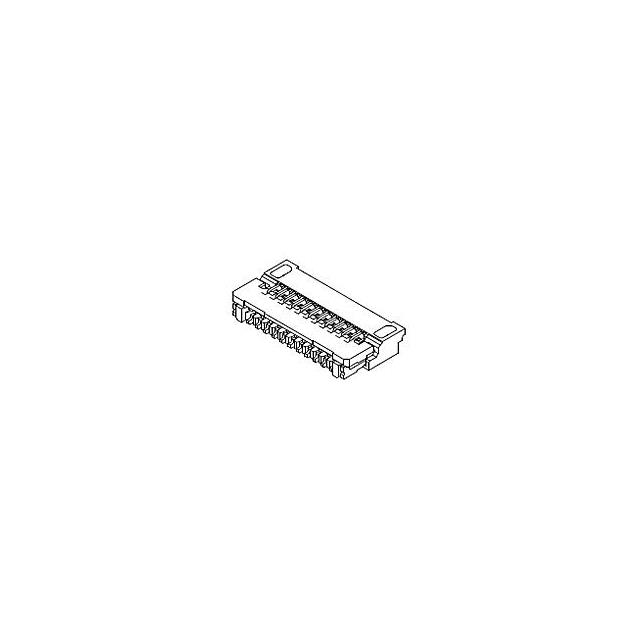

CONN FPC BOTTOM 71POS 0.2MM R/A
| Part | Housing Color | Mating Cycles | Actuator Color | Current Rating (Amps) | Height Above Board [z] | Height Above Board [z] | Cable End Type | Contact Material | Material Flammability Rating | Actuator Material | Contact Finish | Termination | Mounting Type | Flat Flex Type | Connector/Contact Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness [custom] | Locking Feature | Housing Material | Pitch | Pitch | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | White | 10 | Black | 0.2 A | 0.88 mm | 0.035 in | Tabbed | Copper Alloy | UL94 HB UL94 V-0 | Glass Filled Nylon Polyamide (PA) | Gold | Solder | Right Angle Surface Mount | FPC | Contacts Bottom | 71 | 85 °C | -40 C | 0.2 mm | Backlock Flip Lock | Glass Filled Liquid Crystal Polymer (LCP) | 0.2 mm | 0.008 in | 50 V |
