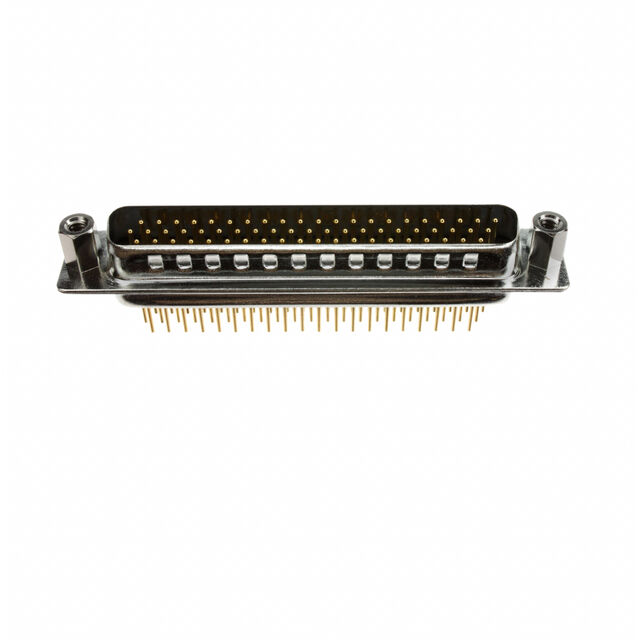

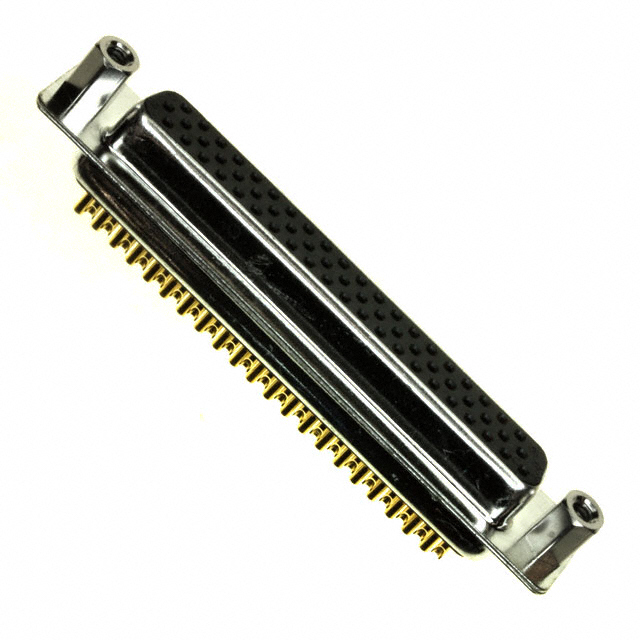

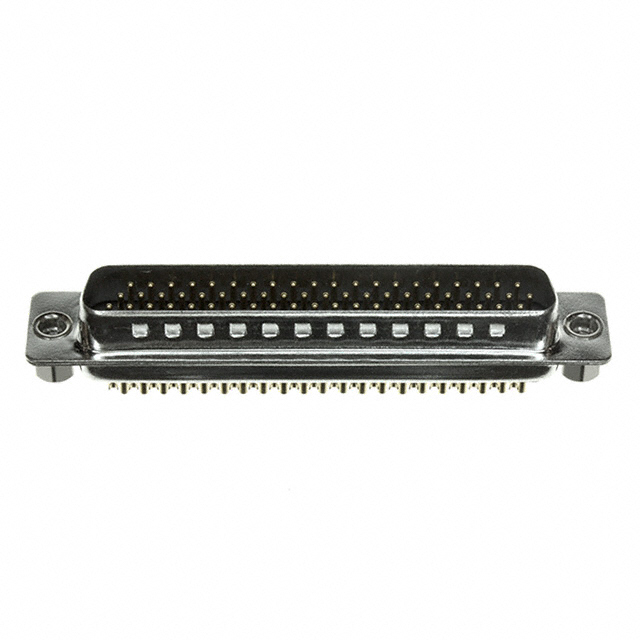

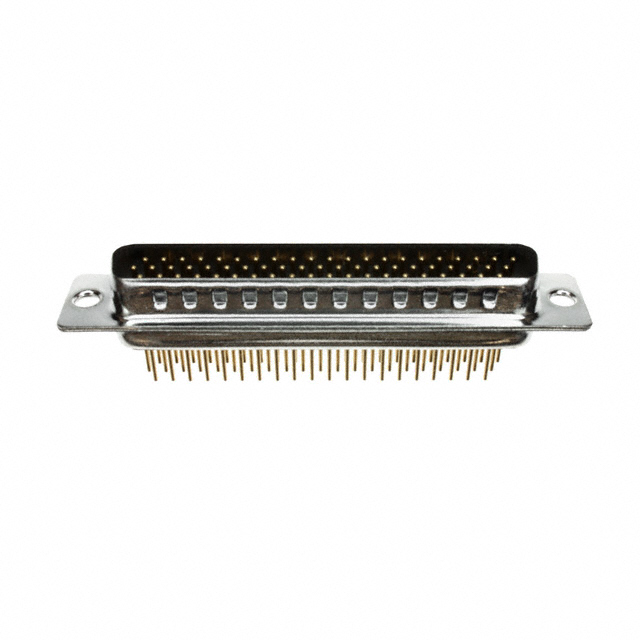

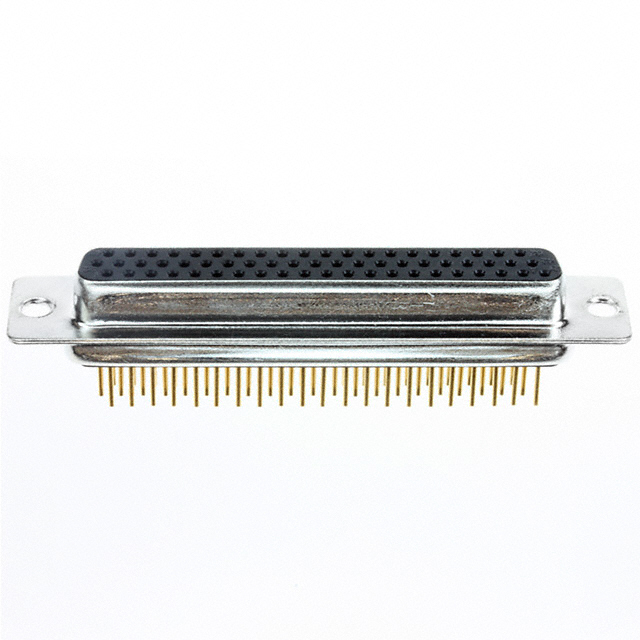

180-M62 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, HD62, HIGH DENSITY, RECEPTACLE, 180 M SERIES, 62 CONTACTS, DC, SOLDER
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Material, Finish | Material Flammability Rating | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Number of Positions | Mounting Type | Features | Contact Finish Thickness | Flange Feature | Termination | Connector Style | Number of Rows [custom] | Contact Finish | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Receptacle Female Sockets | 62 | Panel Mount Through Hole | Shielded | Flash | Housing/Shell (Unthreaded) | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
 NorComp Inc. | Copper Alloy | Black | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Receptacle Female Sockets | 62 | Panel Mount | Shielded | Flash | 4-40 Mating Side Female Screwlock | D-Sub High Density | 3 | Gold | 3 A | 24 AWG | 28 AWG | |
 NorComp Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Receptacle Female Sockets | 62 | Panel Mount Through Hole | Board Lock Shielded | Flash | Board Side (4-40) Mating Side Female Screwlock (4-40) | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
 NorComp Inc. | Copper Alloy | Black | -50 °C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount Through Hole | Grounding Indents Shielded | Flash | Board Side (4-40) | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
 NorComp Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount Through Hole | Board Lock Grounding Indents | Flash | Board Side (4-40) | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
 NorComp Inc. | Brass | Black | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount | Grounding Indents Shielded | Flash | Cable Side (4-40) | D-Sub High Density | 3 | Gold | 5 A | 24 AWG | 28 AWG | |
NorComp Inc. | Brass | Black | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount | Grounding Indents Shielded | Flash | Housing/Shell (Unthreaded) | D-Sub High Density | 3 | Gold | 5 A | 24 AWG | 28 AWG | |
 NorComp Inc. | Copper Alloy | Black | -50 °C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount Through Hole | Grounding Indents Shielded | Flash | Housing/Shell (Unthreaded) | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
 NorComp Inc. | Copper Alloy | Black | -50 °C | 125 °C | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Plug Male Pins | 62 | Panel Mount Through Hole | Grounding Indents Shielded | Flash | 4-40 | Solder | D-Sub High Density | 3 | Gold | 5 A | ||
NorComp Inc. | Copper Alloy | Black | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | UL94 V-0 | Signal | C DC | 4 | Receptacle Female Sockets | 62 | Panel Mount | Shielded | Flash | Housing/Shell (Unthreaded) | D-Sub High Density | 3 | Gold | 3 A | 24 AWG | 28 AWG |
