HDG104 Series
Manufacturer: H&D Wireless AB
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

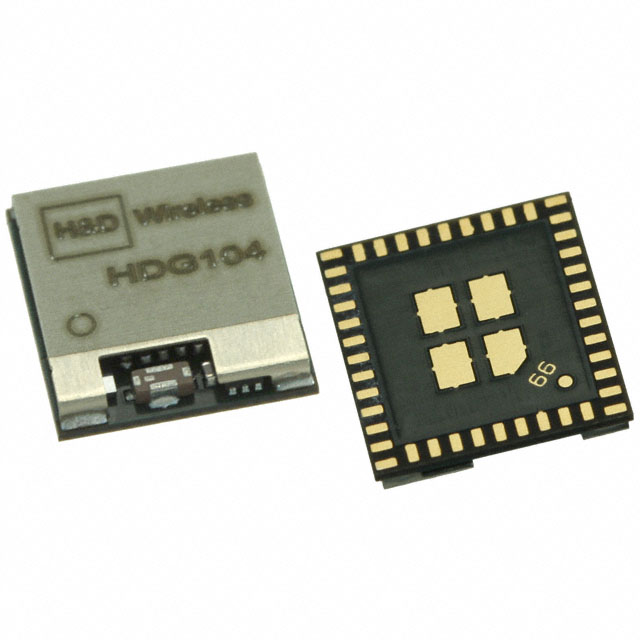

IC RF TXRX+MCU WIFI 44QFN
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Protocol | Current - Receiving | Sensitivity | Frequency | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Type | Current - Transmitting | Package Name | Package Width | Package Length | Serial Interfaces | Package / Case | Data Rate (Max) | RF Family/Standard | Mounting Type | Power - Output | Memory Type | Memory Size (EEPROM) | Memory Size (SRAM) | Modulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 H&D Wireless AB | 70 °C | -20 °C | 802.11b 802.11g | 60 mA | -96 dBm | 2.4 GHz | 2.75 V | 3.6 V | TxRx + MCU | 15 mA | 44-QFN SIP | 7.1 mm | 7.7 mm | SDIO SPI UART | 44-LQFN Exposed Pad Module | 54 Mbps | WiFi | Surface Mount | 17 dBm | EEPROM SRAM | 1 KB | 160 kB | 16QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK |
