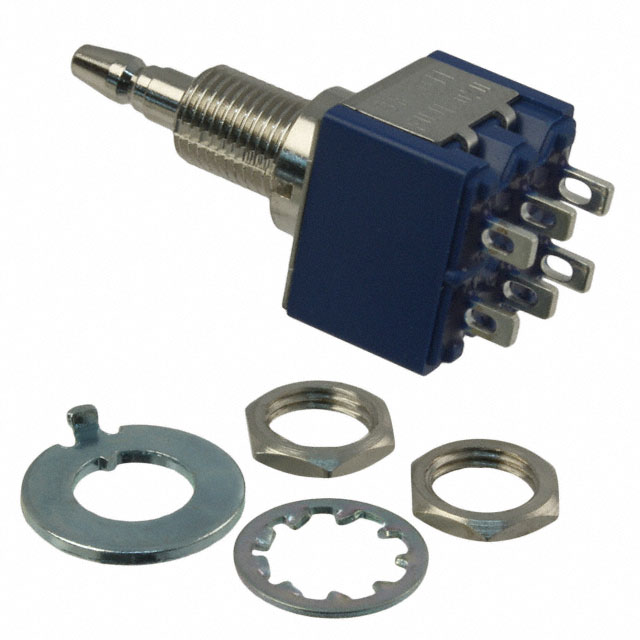

8R2011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Electrical Life | Termination Style | Switch Function | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Type | Type | Mounting Type | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 25000 Steps | Solder Lug | On-On | No Marking | 85 °C | -20 ░C | 3 A | Plunger for Cap | Standard | Panel Mount Rear | 6.5 mm | DPDT | 125 V |
