68601 Series

Catalog

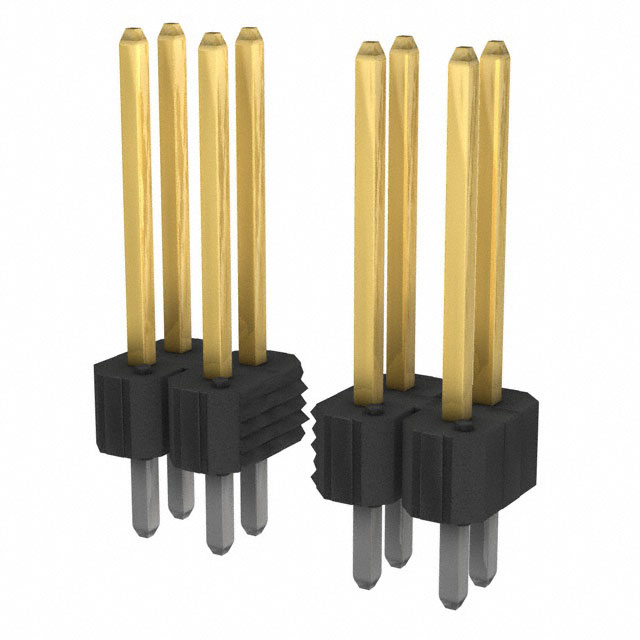

CONN HEADER VERT 72POS 2.54MM

Part	Number of Rows	Contact Type	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Connector Type	Contact Material	Contact Shape	Insulation Color	Mounting Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 68601-672	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	30 Áin	0.76 Ám	72	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-126HLF	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	30 Áin	0.76 Ám	26	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-572	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	15 µin	0.38 µm	72	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-126H	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	30 Áin	0.76 Ám	26	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-122	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	30 Áin	0.76 Ám	22 positions	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-172	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	30 Áin	0.76 Ám	72	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 68601-272H	2	Male Pin	0.1 in	2.54 mm	Push-Pull	All	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Phosphor Bronze	Square	Black	Through Hole	Solder	2.54 mm	0.1 in	Unshrouded	15 µin	0.38 µm	72	15.75 mm	0.62 in	10.16 mm	0.4 in	0.12 in	3.05 mm
