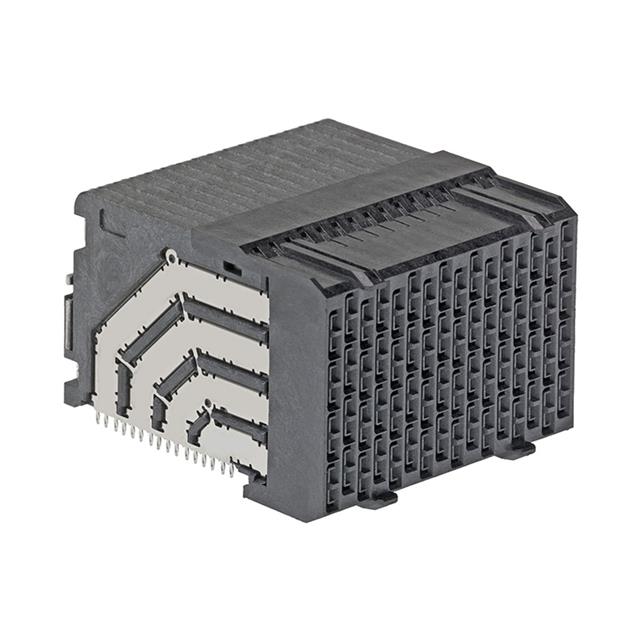

Impel Plus 90 Ohm, 6-Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 16 Columns, 192 Circuits, Plated Through Hole Dimension 0.31mm
Impel Plus 90 Ohm, 6-Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 16 Columns, 192 Circuits, Plated Through Hole Dimension 0.31mm
Impel Plus 90 Ohm, 6-Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 16 Columns, 192 Circuits, Plated Through Hole Dimension 0.31mm
| Part | Termination | Connector Style | Number of Columns | Contact Layout, Typical | Connector Type | Current Rating (Amps) | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions Loaded | Features | Pitch [x] | Pitch [x] | Color | Material Flammability Rating | Contact Finish | Connector Usage | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Press-Fit | Impel™ | 12 | 72 Differential Pairs | Blade Sockets Female Sockets Receptacle | 0.75 A | 29.9 VAC/DC | 0.76 Ám | 30 Áin | 12 | All | Shielded | 0.075 in | 1.9 mm | Black | UL94 V-0 | Gold | Daughtercard | 85 °C | -55 °C | Through Hole Right Angle | 144 |
