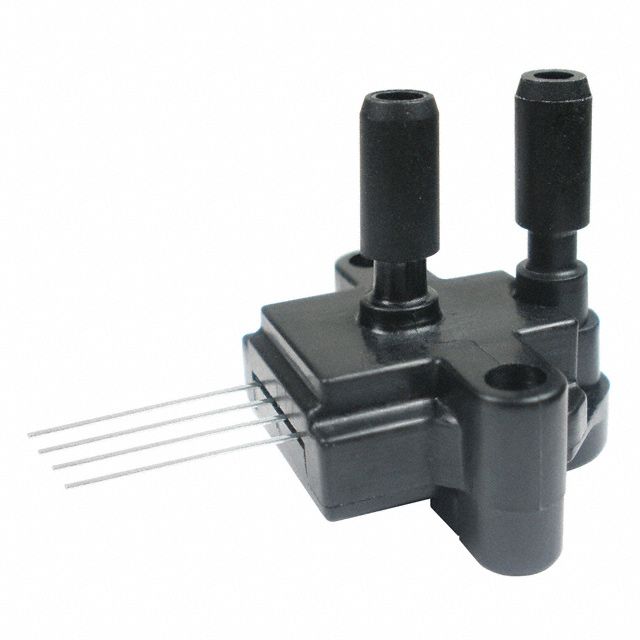

TSCSNBN Series

Catalog

SENSOR 30PSIG 0.19" .02625V 4SIP

Part	Accuracy	Supplier Device Package	Port Size	Port Size	Port Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Mounting Type	Termination Style	Operating Pressure	Operating Pressure	Package / Case	Applications	Maximum Pressure	Maximum Pressure [Max]	Output [Max]	Output [Min]	Pressure Type	Output Type	Output	Maximum Pressure
Honeywell Sensing and Productivity Solutions TSCSNBN030PGUCV	0.15 %	4-SIP	0.19 in	Dual Male Tube	4.8 mm	12 V	1.5 V	Temperature Compensated	85 °C	-40 C	Barbless	Through Hole	PC Pin	30 PSI	206.84 kPa	4-SIP Dual Ports Same Side	Board Mount	792.9 kPa	115 PSI	26.25 mV	0 mV	Vented Gauge	Wheatstone Bridge
Honeywell Sensing and Productivity Solutions TSCSNBN015PDUCV	0.15 %	4-SIP	0.19 in	Dual Male Tube	4.8 mm	12 V	1.5 V	Temperature Compensated	85 °C	-40 C	Barbless	Through Hole	PC Pin	15 PSI	103.42 kPa	4-SIP Dual Ports Same Side	Board Mount			52.5 mV	0 mV	Differential	Wheatstone Bridge	5 V	60 PSI
