T41334 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

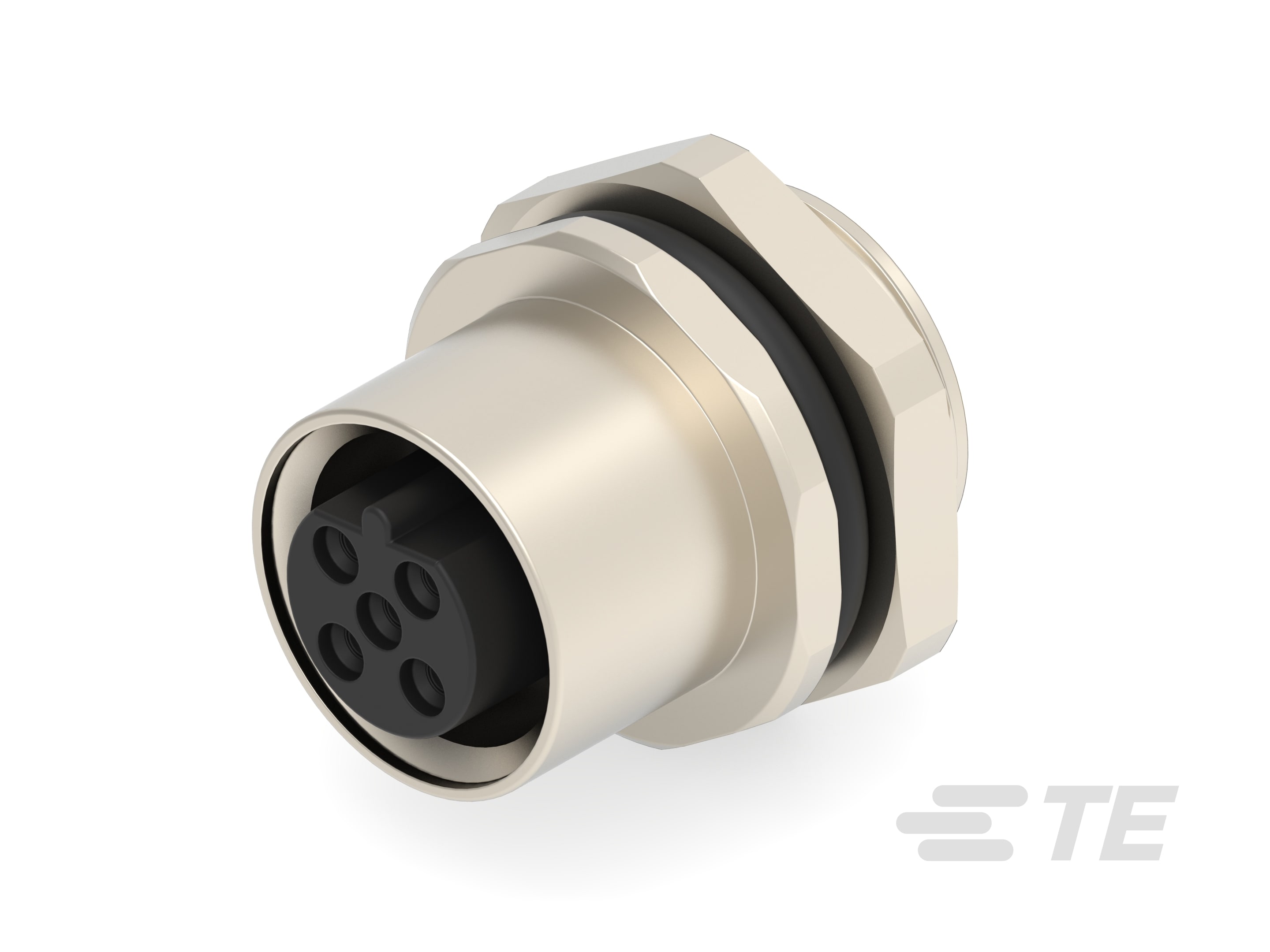

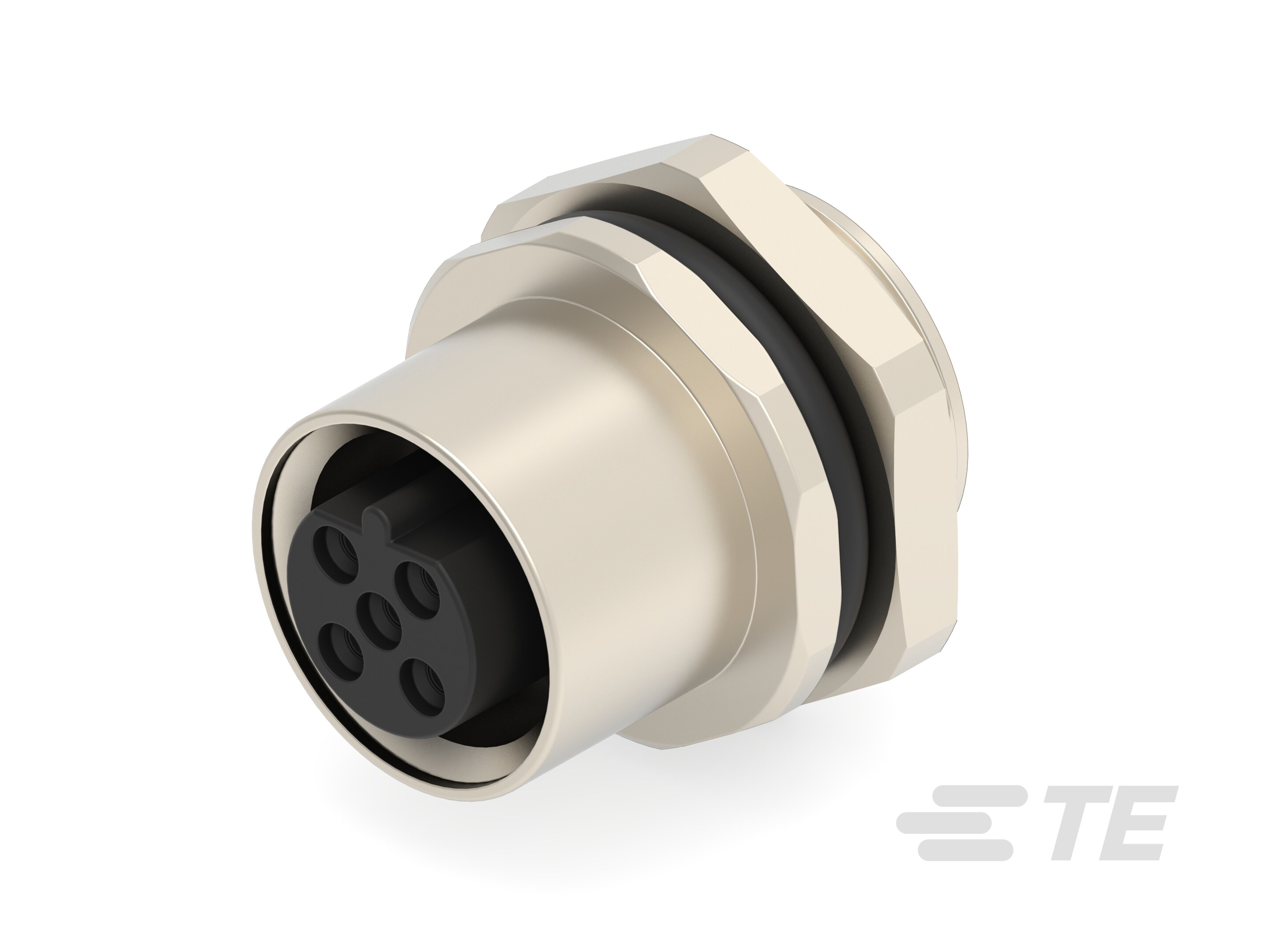

SENSOR CONNECTOR, M12, FEMALE, 5 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
| Part | Applications | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Ingress Protection | Mounting Feature | Primary Material | Fastening Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shell Material | Shielding | Material Flammability Rating | Orientation | Number of Positions | Voltage Rating | Color | Mounting Type | Current Rating (Amps) | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | Gold | IP67 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | Metal | Threaded | Nickel | 85 °C | -40 C | Plug Female Sockets | Copper Alloy | Unshielded | UL94 V-0 | B | 5 | 60 VDC | Silver | Panel Mount | 4 A | M12-5 |
 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | Gold | IP67 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | Metal | Threaded | Nickel | 85 °C | -40 C | Plug Female Sockets | Copper Alloy | Unshielded | UL94 V-0 | B | 2 | 250 V | Silver | Panel Mount | 4 A | M12-2 |
 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | Gold | IP67 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | Metal | Threaded | Nickel | 85 °C | -40 C | Plug Female Sockets | Copper Alloy | Unshielded | UL94 V-0 | B | 250 V | Silver | Panel Mount | 4 A | M12-3 |
