FN258HVIT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 30A CHASSIS MOUNT

Part	Filter Type	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Configuration	Mounting Type	Frequency - Operating

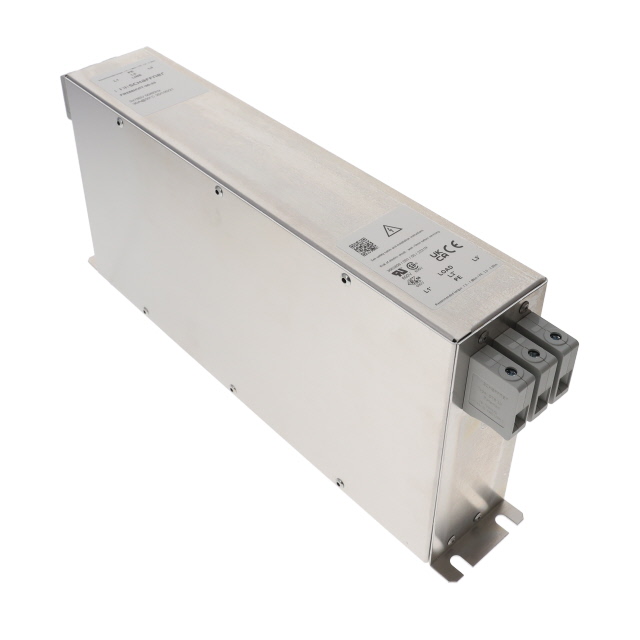

TE Connectivity AMP Connectors FN258HVIT-30-33	Three Phase (Delta)	690 V	400 V	Terminal Block	30 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz

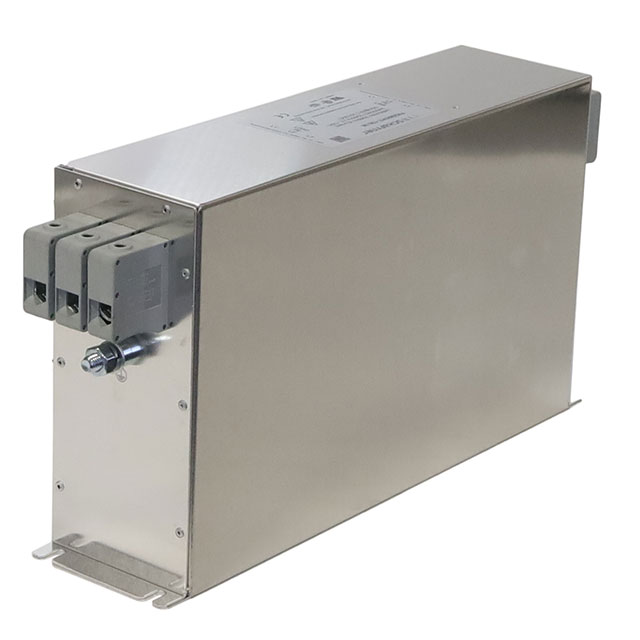

TE Connectivity AMP Connectors FN258HVIT-130-35	Three Phase (Delta)	690 V	400 V	Terminal Block	130 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz

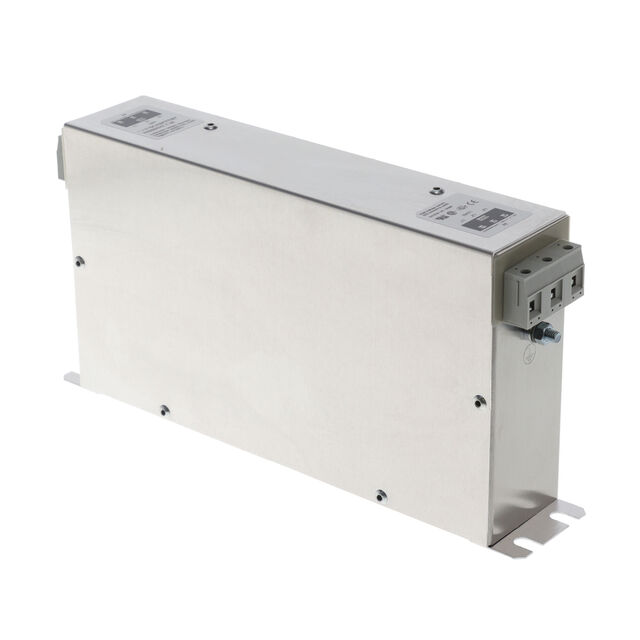

TE Connectivity AMP Connectors FN258HVIT-7-29	Three Phase (Delta)	690 V	400 V	Terminal Block	7 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-16-29	Three Phase (Delta)	690 V	400 V	Terminal Block	16 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-7-29	Three Phase (Delta)	690 V	400 V	Terminal Block	7 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-100-35	Three Phase (Delta)	690 V	400 V	Terminal Block	100 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-55-34	Three Phase (Delta)	690 V	400 V	Terminal Block	55 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz

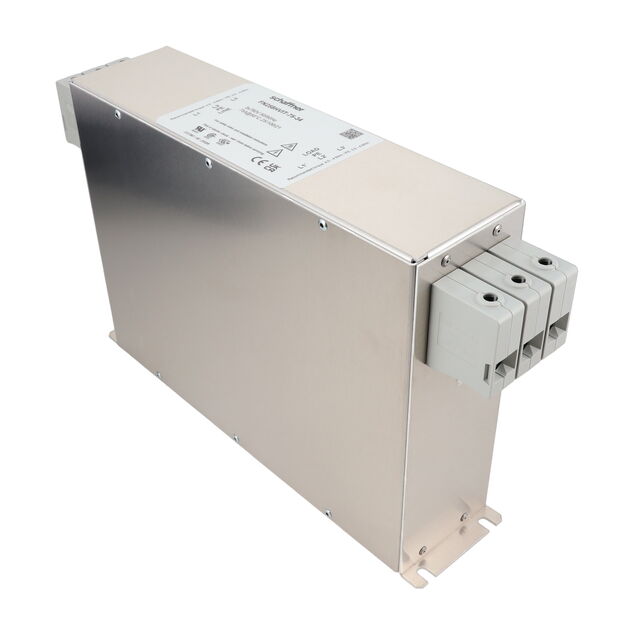

TE Connectivity AMP Connectors FN258HVIT-75-34	Three Phase (Delta)	690 V	400 V	Terminal Block	75 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-55-34	Three Phase (Delta)	690 V	400 V	Terminal Block	55 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
TE Connectivity AMP Connectors FN258HVIT-30-33	Three Phase (Delta)	690 V	400 V	Terminal Block	30 A	100 °C	-25 °C	CSA ENEC UR	Inverters Power Drive Systems	Two Stage	Chassis Mount	60 Hz
