ML630Q466-NNNTB Series

USB / Security MCUs(32bit)

Catalog

USB / Security MCUs(32bit)

Part	Type	Mounting Type	Utilized IC / Part	Core Processor	Contents	Board Type	Package / Case	RAM Size	Program Memory Type	Speed	Connectivity	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Peripherals	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters	Program Memory Size	Core Size	EEPROM Size

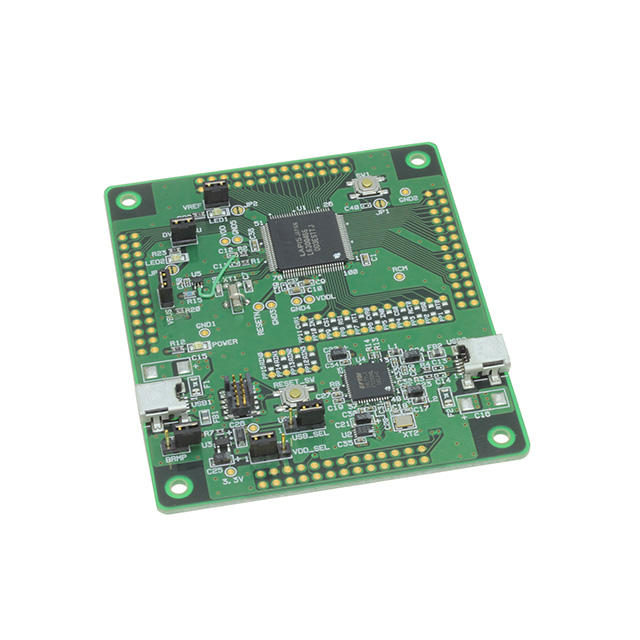

Rohm Semiconductor RB-D630Q466TB100	MCU 32-Bit	Fixed	ML630Q466	ARM® Cortex®-M0+	Board(s)	Evaluation Platform
Rohm Semiconductor ML630Q466-NNNTBZWAX		Surface Mount		ARM® Cortex®-M0+			100-TQFP	4 K	FLASH	24 MHz	I2C SSIO UART/USART USB	1.8 V	3.6 V	100-TQFP (14x14)	DMA LCD POR PWM WDT	Internal	85 °C	-40 °C	A/D 12x12b SAR	128 KB	32-Bit Single-Core	512 x 32

Catalog

USB / Security MCUs(32bit)

Description

ML630Q464/ML630Q466 are high-performance low power 32-bit microcontroller. Equipped with a 32-bit CPU core Cortex-M0+, it implements a 64KB to 128KB flash memory, 8KB to 16KB RAM, rich peripheral circuits, such as USB Full speed device, synchronous serial port, UART, I2C bus interface, supply voltage level detect circuit, RC oscillation type A/D converter, successive approximation type A/D converter, and LCD driver. In addition, it has a data Flash memory area writable by software and a function to rewrite the program area from software.
