TPS82085 Series
Manufacturer: Texas Instruments
Beta
⌘K
SWITCHING VOLTAGE REGULATORS 3A HIGH-EFFICIENCY STEP-DOWN CONVERTER A 595-TPS82085SILT
| Part | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Number of Outputs | Mounting Type | Current - Output (Max) [Max] | Efficiency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Frequency - Switching | Voltage - Output | Main Purpose | Utilized IC / Part | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 0.8 V | 6 V | 8-uSIP (3x2.8) | 1 | Surface Mount | 3 A | 95 % | ITE (Commercial) | -40 C | 125 °C | 8-LDFN Exposed Pad | Non-Isolated PoL Module | 1.3 mm | 0.12 inches | 0.05 in | 0.11 " | 2.8 mm | 3 mm | Adjustable Output | 6 V | 2.5 V | |||||||||||||

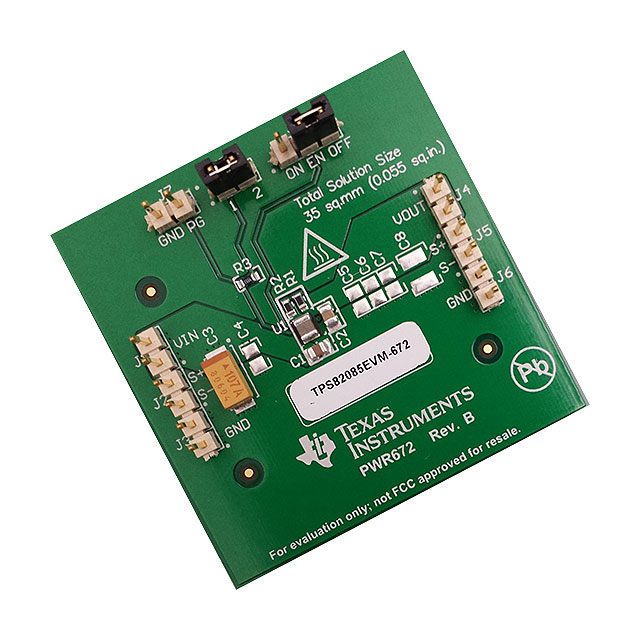

 Texas Instruments | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 2.4 MHz | 1.2 V | DC/DC Step Down | TPS82085 | 3 A | 6 V | 2.5 V | Buck | Board(s) | |||||||||||||||||||||
 Texas Instruments | 0.8 V | 6 V | 8-uSIP (3x2.8) | 1 | Surface Mount | 3 A | 95 % | ITE (Commercial) | -40 C | 125 °C | 8-LDFN Exposed Pad | Non-Isolated PoL Module | 1.3 mm | 0.12 inches | 0.05 in | 0.11 " | 2.8 mm | 3 mm | Adjustable Output | 6 V | 2.5 V |
