4814P Series
Manufacturer: Bourns Inc.
Beta
⌘K

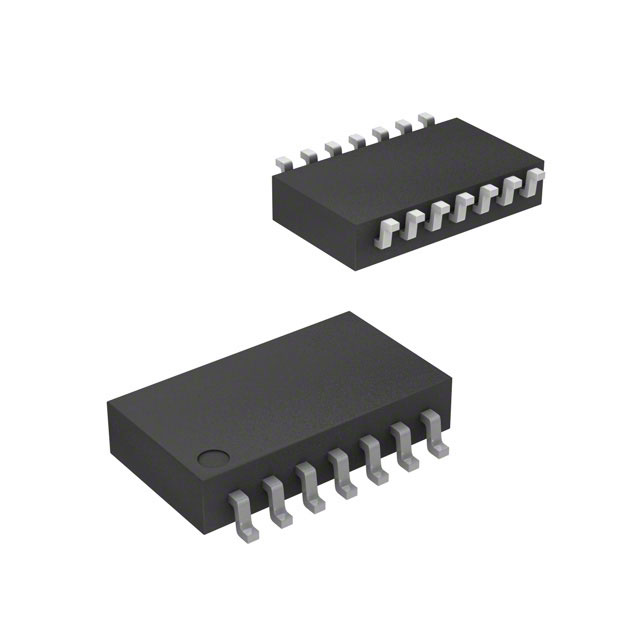

RES ARRAY 7 RES 33 OHM 14SOIC
| Part | Mounting Type | Tolerance | Number of Resistors | Circuit Type | Resistance (Ohms) | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Power Per Element | Grade | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Pins | Temperature Coefficient | Supplier Device Package | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Surface Mount | ±1Ohm | 7 | Isolated | 33 Ohms | -55 C | 125 °C | AEC-Q200 | 160 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 250 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | |||
 Bourns Inc. | Surface Mount | 13 | Bussed | -55 C | 125 °C | AEC-Q200 | 80 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 3.3 kOhms | |||
 Bourns Inc. | Surface Mount | 13 | Bussed | -55 C | 125 °C | AEC-Q200 | 80 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 1.5 k | |||
Bourns Inc. | Surface Mount | 13 | Bussed | 20 kOhms | -55 C | 125 °C | AEC-Q200 | 80 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | |||
Bourns Inc. | Surface Mount | 7 | Isolated | -55 C | 125 °C | AEC-Q200 | 160 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 2.7 k | |||
Bourns Inc. | Surface Mount | 13 | Bussed | -55 C | 125 °C | AEC-Q200 | 80 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 22k | |||
Bourns Inc. | Surface Mount | 7 | Isolated | -55 C | 125 °C | AEC-Q200 | 160 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 4.7 kOhms | |||
Bourns Inc. | Surface Mount | 7 | Isolated | -55 C | 125 °C | AEC-Q200 | 160 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 180 Ohms | |||
Bourns Inc. | Surface Mount | 7 | Isolated | 470 Ohms | -55 C | 125 °C | AEC-Q200 | 160 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | |||
Bourns Inc. | Surface Mount | 13 | Bussed | -55 C | 125 °C | AEC-Q200 | 80 mW | Automotive | 5.59 mm | 9.91 mm | 0.39 " | 0.22 in | 14 | 100 ppm/°C | 14-SOM | 14-SOIC (0.220" 5.59mm Width) | 2.4 mm | 0.094 in | 2 % | 2.7 k |
