MOC811 Series

Catalog

OPTOISOLATOR 7.5KV TRANS 6-DIP

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Isolation	Number of Channels	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Forward (Vf) (Typ)	Mounting Type	Voltage - Output (Max) [Max]	Current Transfer Ratio (Min) [Min]	Package / Case	Package / Case	Package / Case	Vce Saturation (Max) [Max]	Input Type	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
ON Semiconductor MOC8111M	2 µs	11 µs	7500 Vpk	1	90 mA	6-DIP	100 °C	-40 °C	1.81 mOhm	1.15 V	Through Hole	70 V	20 %	6-DIP	0.3 in	7.62 mm	400 mV	DC	3 µs	18 µs
ON Semiconductor MOC8113			5300 Vrms	1	90 mA	6-DIP	100 °C	-55 °C	1.81 mOhm	1.15 V	Through Hole	70 V	100 %	6-DIP	0.3 in	7.62 mm	400 mV	DC			4.2 µs	23 µs	14 µs	3 µs
ON Semiconductor MOC8111M	2 µs	11 µs	7500 Vpk	1	90 mA	6-DIP	100 °C	-40 °C	1.81 mOhm	1.15 V	Through Hole	70 V	20 %	6-DIP	0.3 in	7.62 mm	400 mV	DC	3 µs	18 µs

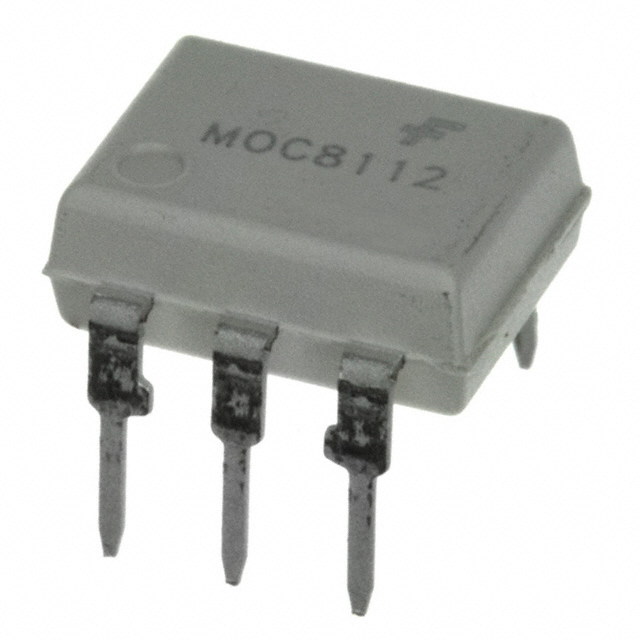

ON Semiconductor MOC8112M			7500 Vpk	1	90 mA	6-DIP	100 °C	-40 °C	1.81 mOhm	1.15 V	Through Hole	70 V	50 %	6-DIP	0.3 in	7.62 mm	400 mV	DC			4.2 µs	23 µs	14 µs	3 µs
ON Semiconductor MOC8112			5300 Vrms	1	90 mA	6-DIP	100 °C	-55 °C	1.81 mOhm	1.15 V	Through Hole	70 V	50 %	6-DIP	0.3 in	7.62 mm	400 mV	DC			4.2 µs	23 µs	14 µs	3 µs
