767089 Series

Catalog

STACKING CONNECTOR, RCPT, 266POS, 0.64MM

Part	Pitch	Pitch	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Contact Finish
TE Connectivity AMP Connectors 767089-7	0.64 mm	0.025 in	Receptacle Center Strip Contacts	Board Edge Straddle Mount	5 µin	0.127 µm	Board Guide Ground Bus (Plane)	266	0.236 in	6 mm	2	Palladium-Nickel
TE Connectivity AMP Connectors 767089-1	0.64 mm	0.025 in	Receptacle Center Strip Contacts	Board Edge Straddle Mount	5 µin	0.127 µm	Board Guide Ground Bus (Plane)	38	0.236 in	6 mm	2	Palladium-Nickel
TE Connectivity AMP Connectors 767089-3	0.64 mm	0.025 in	Receptacle Center Strip Contacts	Board Edge Straddle Mount	5 µin	0.127 µm	Board Guide Ground Bus (Plane)	114	0.236 in	6 mm	2	Palladium-Nickel

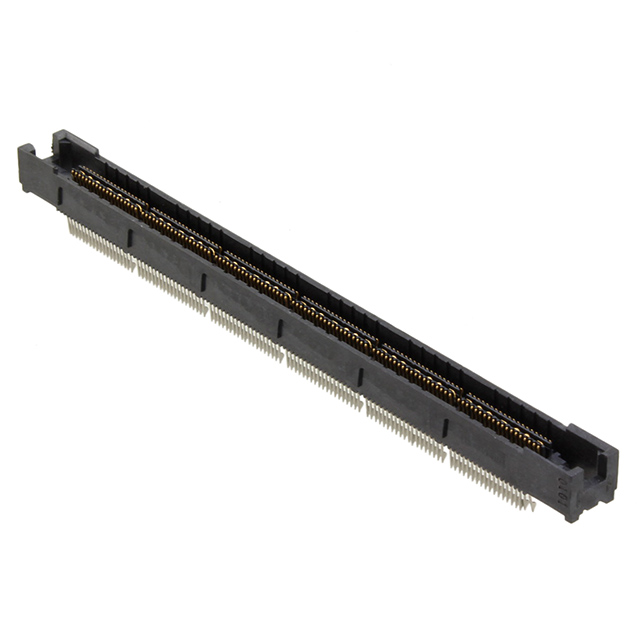

TE Connectivity AMP Connectors 767089-6	0.64 mm	0.025 in	Receptacle Center Strip Contacts	Board Edge Straddle Mount	5 µin	0.127 µm	Board Guide Ground Bus (Plane)	228	0.236 in	6 mm	2	Palladium-Nickel
TE Connectivity AMP Connectors 767089-5	0.64 mm	0.025 in	Receptacle Center Strip Contacts	Board Edge Straddle Mount	5 µin	0.127 µm	Board Guide Ground Bus (Plane)	190	0.236 in	6 mm	2	Palladium-Nickel
