ADUC814 Series

Precision Analog Microcontroller: 1.3MIPS 8052 MCU + 8kB Flash + 6-Ch 12-Bit ADC + Dual 12-Bit DAC

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Precision Analog Microcontroller: 1.3MIPS 8052 MCU + 8kB Flash + 6-Ch 12-Bit ADC + Dual 12-Bit DAC

Part	Board Type	Suggested Programming Environment	Core Processor	Platform	Utilized IC / Part	Type	Contents	Mounting Type	RAM Size [custom]	RAM Size [custom]	Program Memory Type	Data Converters	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Oscillator Type	Package / Case	Package / Case	EEPROM Size [custom]	EEPROM Size [custom]	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Peripherals	Core Size	Number of I/O	Supplier Device Package

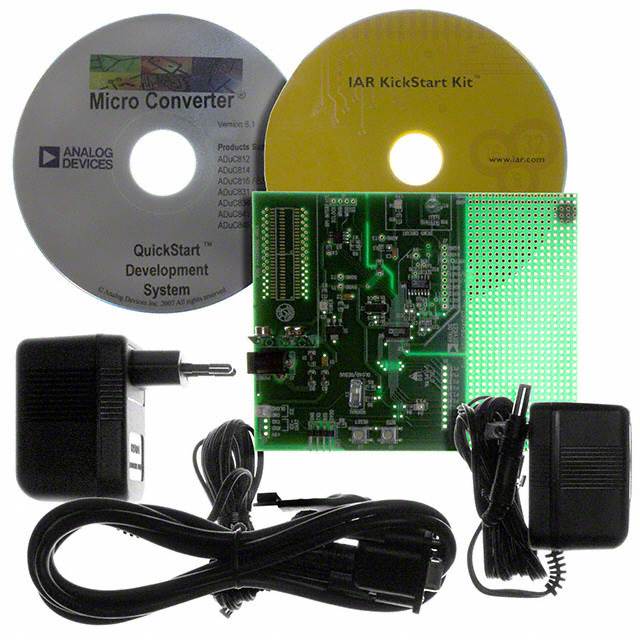

Analog Devices Inc./Maxim Integrated EVAL-ADUC814QSZ	Evaluation Platform	IAR EW Keil µVision	8052	QuickStart™	ADuC814	MCU 8-Bit	Board(s) Cable(s) Power Supply	Fixed
Analog Devices Inc./Maxim Integrated ADUC814BRUZ			8052					Surface Mount	8	256	FLASH	A/D 6x12b D/A 2x12b	5.5 V	2.7 V	16.78 MHz	Internal	0.173 " 4.4 mm	28-TSSOP	8 bits	640	8 KB	125 °C	-40 °C	I2C SPI UART/USART	POR PSM Temp Sensor WDT	8-Bit	17	28-TSSOP
Analog Devices Inc./Maxim Integrated ADUC814ARUZ			8052					Surface Mount	8	256	FLASH	A/D 6x12b D/A 2x12b	5.5 V	2.7 V	16.78 MHz	Internal	0.173 " 4.4 mm	28-TSSOP	8 bits	640	8 KB	125 °C	-40 °C	I2C SPI UART/USART	POR PSM Temp Sensor WDT	8-Bit	17	28-TSSOP
Analog Devices Inc./Maxim Integrated ADUC814ARUZ-REEL			8052					Surface Mount	8	256	FLASH	A/D 6x12b D/A 2x12b	5.5 V	2.7 V	16.78 MHz	Internal	0.173 " 4.4 mm	28-TSSOP	8 bits	640	8 KB	125 °C	-40 °C	I2C SPI UART/USART	POR PSM Temp Sensor WDT	8-Bit	17	28-TSSOP
Analog Devices Inc./Maxim Integrated ADUC814BRUZ-REEL7			8052					Surface Mount	8	256	FLASH	A/D 6x12b D/A 2x12b	5.5 V	2.7 V	16.78 MHz	Internal	0.173 " 4.4 mm	28-TSSOP	8 bits	640	8 KB	125 °C	-40 °C	I2C SPI UART/USART	POR PSM Temp Sensor WDT	8-Bit	17	28-TSSOP
Analog Devices Inc./Maxim Integrated ADUC814ARUZ-REEL7			8052					Surface Mount	8	256	FLASH	A/D 6x12b D/A 2x12b	5.5 V	2.7 V	16.78 MHz	Internal	0.173 " 4.4 mm	28-TSSOP	8 bits	640	8 KB	125 °C	-40 °C	I2C SPI UART/USART	POR PSM Temp Sensor WDT	8-Bit	17	28-TSSOP

Catalog

Precision Analog Microcontroller: 1.3MIPS 8052 MCU + 8kB Flash + 6-Ch 12-Bit ADC + Dual 12-Bit DAC

Description

The ADuC814 MicroConverter®is a fully integrated 12-bit data acquisition system-on-a-chip. Like all of ADI's MicroConverter products, it features precision A/D & D/A conversion and a Flash microcontroller on a single chip.The ADuC814 is available in a 28-pin TSSOP package and operates on a 3V or 5V power supply.
