ST1-DC Series

Manufacturer: Panasonic Electronic Components

Catalog

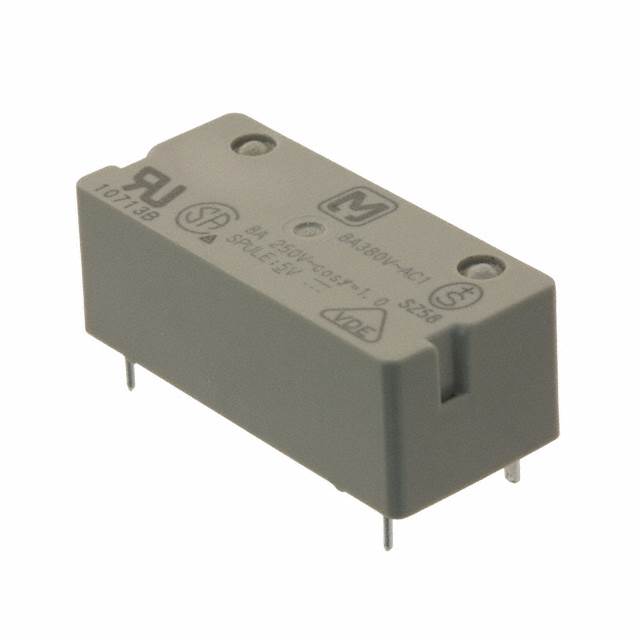

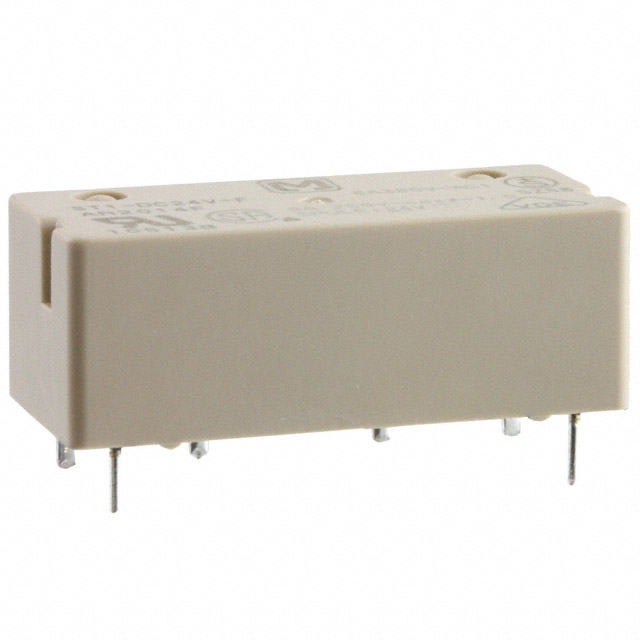

RELAY GEN PURPOSE DPST 8A 6V

Part	Coil Resistance	Contact Form	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Load - Max Switching	Switching Voltage	Termination Style	Contact Material	Approval Agency	Coil Type	Must Release Voltage	Coil Current	Contact Rating (Current)	Release Time	Mounting Type	Seal Rating	Operate Time	Coil Voltage
Panasonic Electronic Components ST1-DC6V	150 Ohms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	4.8 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Alloy	CSA UR VDE	Non Latching	0.6 VDC	40 mA	8 A	10 ms	Through Hole	Sealed - Fully	15 ms
Panasonic Electronic Components ST1-DC12V-F	600 Ohms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	9.6 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Tin Oxide (AgSnO)	CSA UR VDE	Non Latching	1.2 VDC	0.02 A	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	12 VDC
Panasonic Electronic Components ST1-DC24V-F	2.4 kOhms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	19.2 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Tin Oxide (AgSnO)	CSA UR VDE	Non Latching	2.4 VDC	10 mA	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	24 VDC
Panasonic Electronic Components ST1-DC24V	2.4 kOhms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	19.2 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Alloy	CSA UR VDE	Non Latching	2.4 VDC	10 mA	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	24 VDC
Panasonic Electronic Components ST1-DC5V-F	105 Ohms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	4 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Tin Oxide (AgSnO)	CSA UR VDE	Non Latching	0.5 VDC	47.6 mA	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	5 VDC
Panasonic Electronic Components ST1-DC12V	600 Ohms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	9.6 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Alloy	CSA UR VDE	Non Latching	1.2 VDC	0.02 A	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	12 VDC
Panasonic Electronic Components ST1-DC9V	360 Ohms	DPST-NO/NC (1 Form A 1 Form B)	General Purpose	60 °C	-40 C	7.2 VDC	2000 W 3040 VA	250 VDC 380 VAC	PC Pin	Silver Alloy	CSA UR VDE	Non Latching	0.9 VDC	25 mA	8 A	10 ms	Through Hole	Sealed - Fully	15 ms	9 VDC
