Schaffner FN9260/FN261 Series

AC Power Entry Modules IEC Inlet Filter with Dual Fuse 250VAC, 2A, Faston, Snap-in Vertical 2.6 to 3.5mm

Manufacturer: TE Connectivity AMP Connectors

Catalog

AC Power Entry Modules IEC Inlet Filter with Dual Fuse 250VAC, 2A, Faston, Snap-in Vertical 2.6 to 3.5mm

...

Part	Mounting Type	Connector Style	Filter Type	Material Flammability Rating	Termination	Ingress Protection	Connector Type	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Fuse Holder, Drawer	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Termination	Termination
TE Connectivity AMP Connectors FN9260B-6-07	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	6 A	33 mm	29 mm	CQC CSA ENEC UL	Twin Fused

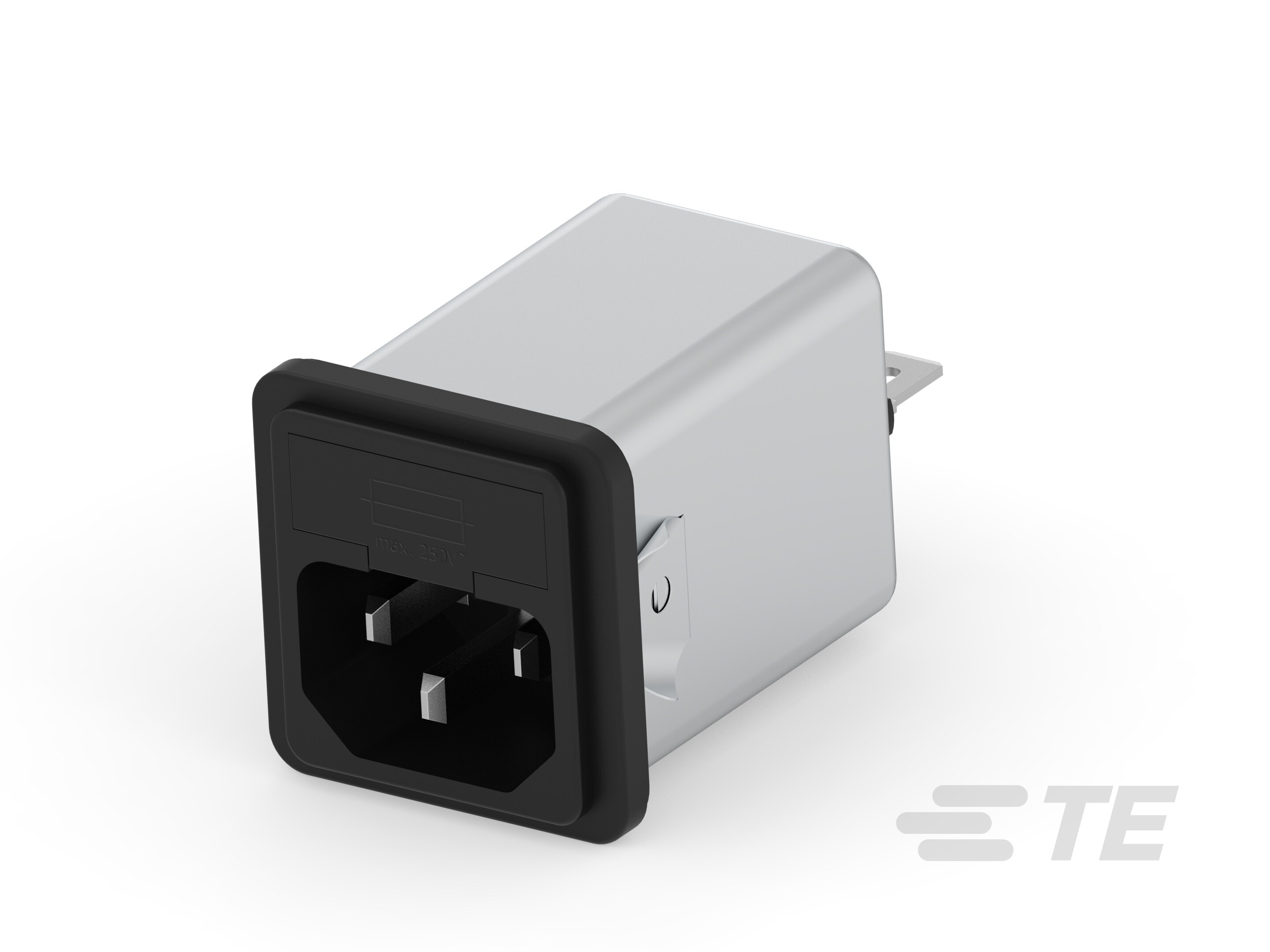

TE Connectivity AMP Connectors FN261S-4-06-10	Panel Mount Snap-In	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-2	Quick Connect	IP40	Receptacle Male Blades - Module	4 A	33 mm	29.5 mm	CQC CSA ENEC UL	Fuse Holder	1.5 mm	0.6 mm	0.059 in	0.024 in	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9260SB-6-07-10	Panel Mount Snap-In	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	6 A	33 mm	29.5 mm	CQC CSA ENEC UL	Twin Fused	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9260S-2-07-10	Panel Mount Snap-In	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	2 A	33 mm	29.5 mm	CQC CSA ENEC UL	Twin Fused	1.5 mm	0.6 mm	0.059 in	0.024 in

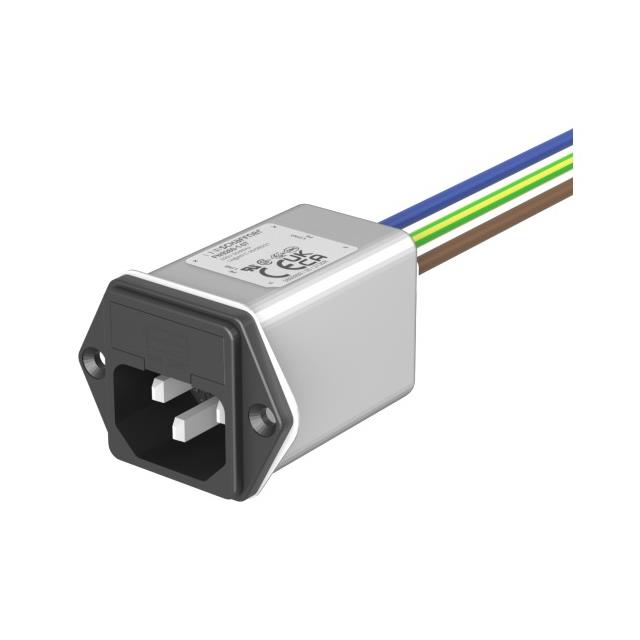

TE Connectivity AMP Connectors FN9260-1-07	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	1 A	33 mm	29 mm	CQC CSA ENEC UL	Twin Fused
TE Connectivity AMP Connectors FN9260A-4-07	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	4.6 A	33 mm	29 mm	CE CQC CSA ENEC UL	Twin Fused

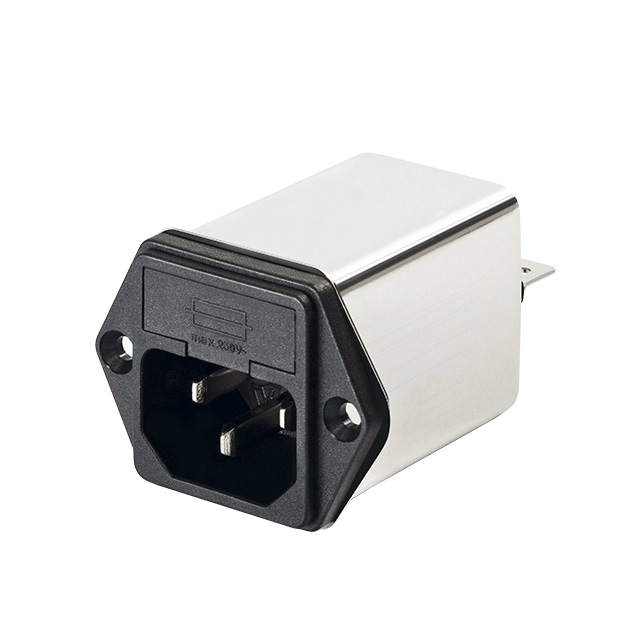

TE Connectivity AMP Connectors FN261-2-06	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-2	Quick Connect	IP40	Receptacle Male Blades - Module	10 A	33 mm	29 mm	CQC CSA ENEC UL	Fuse Holder					6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9260B-2-06	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	UL94 V-2	Quick Connect	IP40	Receptacle Male Blades - Module	2 A	33 mm	29 mm	CQC CSA ENEC UL	Twin Fused					6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9260A-6-07	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	6.9 A	33 mm	29 mm	CE CQC CSA ENEC UL	Twin Fused

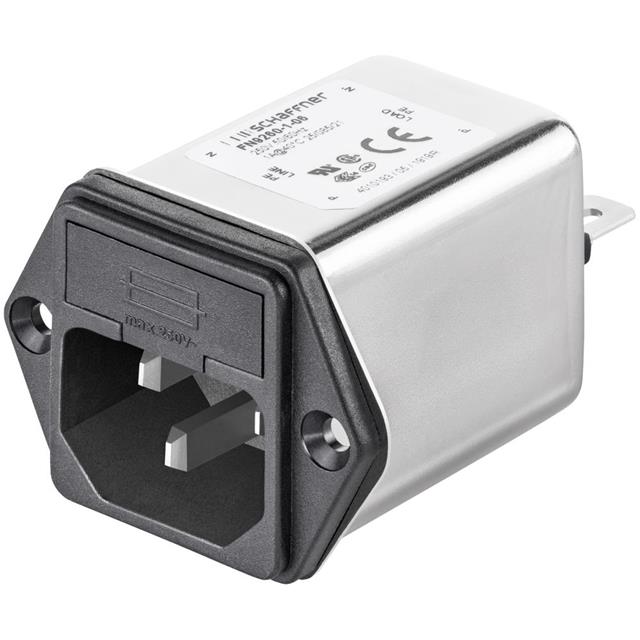

TE Connectivity AMP Connectors FN9260B-4-07	Flange Panel Mount	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Wire Leads	IP40	Receptacle Male Blades - Module	4 A	33 mm	29 mm	CQC CSA ENEC UL	Twin Fused
