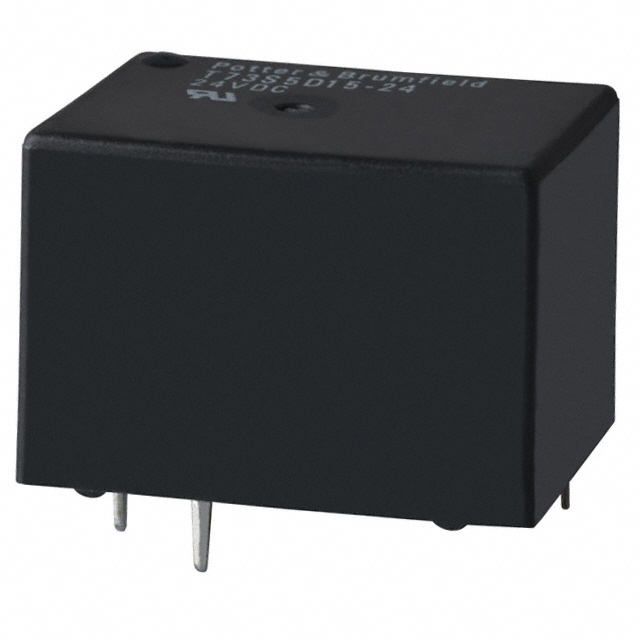

T73S5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 18V
| Part | Coil Resistance | Release Time | Contact Material | Load - Max Switching | Coil Voltage | Must Operate Voltage | Contact Rating (Current) | Mounting Type | Relay Type | Coil Type | Seal Rating | Contact Form | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Insulation | Termination Style | Must Release Voltage | Operate Time | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 720 Ohms | 5 ms | Silver Cadmium Oxide (AgCdO) | 280 W 1200 VA | 18 VDC | 11.7 VDC | 10 A | Through Hole | General Purpose | Non Latching | Sealed - Fully | SPDT (1 Form C) | 28 VDC 120 VAC | 80 °C | -30 ░C | Class F | PC Pin | 0.9 VDC | 10 ms | 25 mA |
TE Connectivity AMP Connectors | 320 Ohms | 5 ms | Silver Cadmium Oxide (AgCdO) | 280 W 1200 VA | 12 VDC | 7.8 VDC | 10 A | Through Hole | General Purpose | Non Latching | Sealed - Fully | SPDT (1 Form C) | 28 VDC 120 VAC | 80 °C | -30 ░C | Class F | PC Pin | 0.6 VDC | 10 ms | 0.0375 A |
