TPS54525 Series

4.5V to 18V Input, 5.5-A Synchronous Step-Down Converter

Catalog

4.5V to 18V Input, 5.5-A Synchronous Step-Down Converter

Part	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output (Min/Fixed)	Current - Output	Output Type	Voltage - Input (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Output Configuration	Function	Topology	Voltage - Output (Max) [Max]	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Board Type	Supplied Contents	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output
Texas Instruments TPS54525PWP	18 V	1	0.76 V	5.5 A	Adjustable	4.5 V	14-PowerTSSOP	4.4 mm	0.173 in	Positive	Step-Down	Buck	5.5 V	650 kHz	85 °C	-40 °C	14-HTSSOP	Surface Mount
Texas Instruments TPS54525PWPR	18 V	1	0.76 V	5.5 A	Adjustable	4.5 V	14-PowerTSSOP	4.4 mm	0.173 in	Positive	Step-Down	Buck	5.5 V	650 kHz	85 °C	-40 °C	14-HTSSOP	Surface Mount

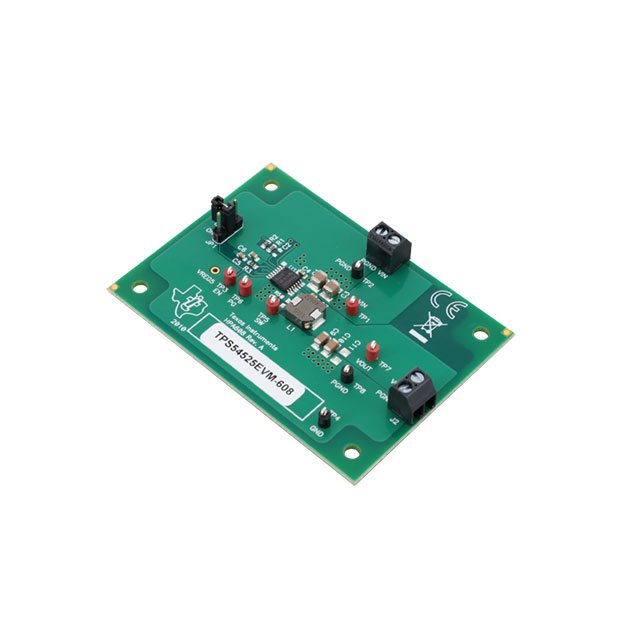

Texas Instruments TPS54525EVM-608				5.5 A										650 kHz					18 V	4.5 V	Buck	Fully Populated	Board(s)	DC/DC Step Down	Non-Isolated	1	1.05 V

Catalog

4.5V to 18V Input, 5.5-A Synchronous Step-Down Converter

Key Features

• D-CAP2™ mode enables fast transient responseLow output ripple and allows ceramic output capacitorWide VINinput voltage range: 4.5 V to 18 VOutput voltage range: 0.76 V to 5.5 VHighly efficient integrated FETs optimized for lower duty cycle applications –63 mΩ (high side) and 33 mΩ (low side)High efficiency, less than 10 µA at shutdownHigh initial bandgap reference accuracyAdjustable soft startPre-biased soft start650-kHz switching frequency (fSW)Cycle-by-cycle overcurrent limitPower good outputD-CAP2™ mode enables fast transient responseLow output ripple and allows ceramic output capacitorWide VINinput voltage range: 4.5 V to 18 VOutput voltage range: 0.76 V to 5.5 VHighly efficient integrated FETs optimized for lower duty cycle applications –63 mΩ (high side) and 33 mΩ (low side)High efficiency, less than 10 µA at shutdownHigh initial bandgap reference accuracyAdjustable soft startPre-biased soft start650-kHz switching frequency (fSW)Cycle-by-cycle overcurrent limitPower good output

Description

The TPS54525 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54525 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54525 uses the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The TPS54525 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable soft start time and a power good function. The TPS54525 is available in the 14-pin HTSSOP package, and designed to operate from –40°C to 85°C. The TPS54525 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54525 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54525 uses the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The TPS54525 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable soft start time and a power good function. The TPS54525 is available in the 14-pin HTSSOP package, and designed to operate from –40°C to 85°C.
