772-E09 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, DB9, IP68, STANDARD, PLUG, SEAL-D 772-E SERIES, 9 CONTACTS, DE, SOLDER
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Current Rating (Amps) | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Flange Feature | Contact Finish | Shell Material, Finish | Termination | Number of Rows [custom] | Features | Contact Type | Number of Positions | Contact Finish Thickness | Ingress Protection | Connector Style | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

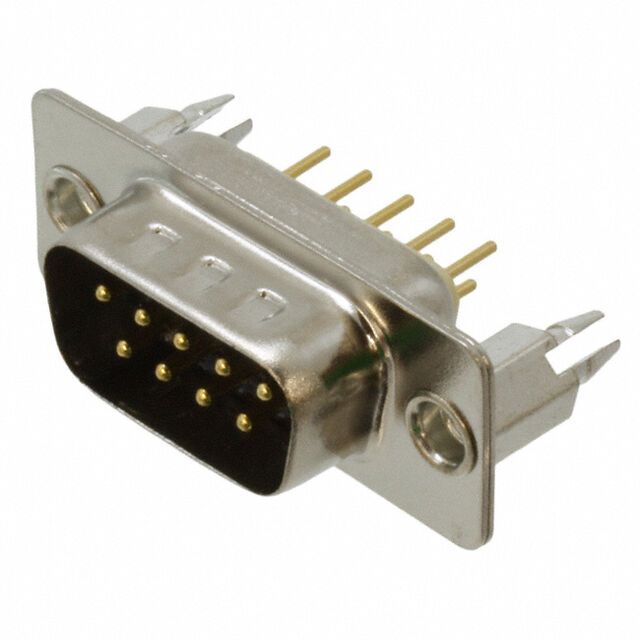

 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Brass | 5 A | Plug Male Pins | 1 | DE E | Panel Mount Through Hole | Board Side (4-40) | Gold | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents | Signal | 9 | Flash | IP67 - Dust Tight Waterproof | D-Sub | UL94 V-0 |

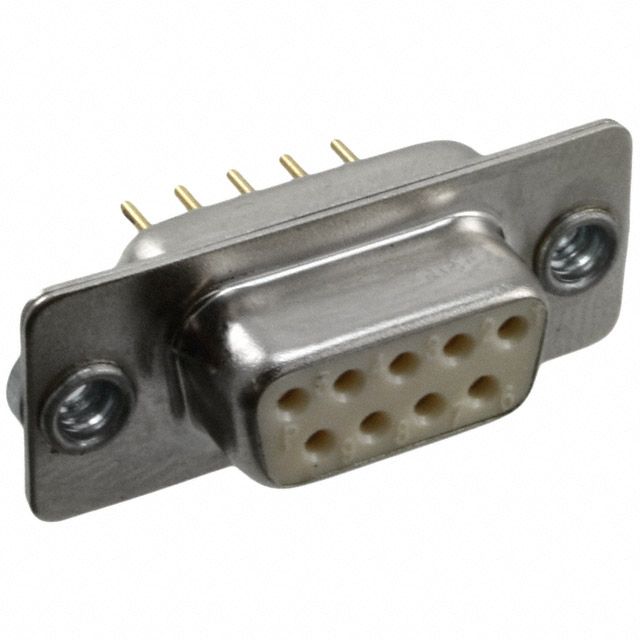

 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | -50 °C | 100 °C | Brass | 5 A | Receptacle Female Sockets | 1 | DE E | Panel Mount Through Hole | Board Side | Gold | Nickel Plated Steel | Solder | 2 | Signal | 9 | Flash | IP67 - Dust Tight Waterproof | D-Sub | UL94 V-0 |
